2018年3月15日(木) 18:00~19:00
千里ライフサイエンスフォーラム・2017年度3月フォーラム
千里ライフサイエンスセンタービル8階801~802号室

立命館大学総合心理学部 北岡 明佳 email

2018/3/10 より 配布物1 配布物2 抄録



視点フリーのイメージハンプ(最新!)

「視点フリーのイメージハンプ」

3本の狭い領域が凸に見える。

Copyright Akiyoshi Kitaoka 2018 (March 8)

「視点フリーのイメージハンプの基本図形」

単なる勾配の異なる輝度グラデーションの組み合わせである。相対的に輝度勾配の急な領域が凸に見える現象である。

Copyright Akiyoshi Kitaoka 2018 (March 8)

---
謝辞: 以下の研究補助金の成果である。

平成27・28・29・30年度科学研究費補助金 基盤研究(A) (研究代表者・北岡明佳) 「錯視の多面的研究 ―実験心理学・脳機能画像・数理解析・生物学の手法を用いて―」 課題番号 15H01984

平成26~29年度科学研究費補助金 基盤研究(A) (研究代表者: 星加民雄) 「錯視効果の交通システムへの応用」 課題番号 26242003

Visiome Platformの継続開発・運用とコンテンツ収集と登録 (2014年度より下記に名称が変更: INCF日本ノード Visiomeプラットフォーム(PF)の継続開発・公開運用とコンテンツ収集・登録) (独立行政法人理化学研究所との共同研究) (2006年~2018年)


cf.

クレーター錯視



特定のパターンの方向に静止画が動いて見える錯視



「蛇の回転」

円盤が回転して見える。

Copyright Akiyoshi Kitaoka 2003

2015年版


黒→濃い灰色→白→薄い灰色→黒 の方向に動いて見える。

Direction: black → dark-gray → white → light-gray → black


「蛇の回転」の作り方


この錯視のわかりやすい説明のある本

北岡明佳著 人はなぜ錯視にだまされるのか? トリック・アイズ メカニズム カンゼン刊

(定価:1,600円(税別) ISBN 978-4-86255-020-0) アマゾンのページ

錯視のメカニズムの解説多し!


新刊!



北岡明佳著 錯視入門 朝倉書店 (2010年7月)  new!

 もっと情報



北岡明佳(監修) ニュートン別冊 脳はなぜだまされるのか? 錯視 完全図解 (2007年10月刊行)

 もっと情報


北岡明佳の著書一覧


A brief history of phenomenal aspects of the Fraser-Wilcox illusion group

<Kitaoka, A. (forthcoming). The Fraser-Wilcox illusion and its extension. In Shapiro, A. and Todorovic, D. (Eds.), Oxford Compendium of Visual Illusions. Oxford University Press.>


1. Fraser and Wilcox (1979)

References

Fraser, A. and Wilcox, K. J. (1979). Perception of illusory movement. Nature, 281, 565-566.

Observers saw illusory motion in a stationary image which consists of repeated luminnace gradient in a saw-tooth wave form. Some reported illusory motion from dark to light along a luminance gradient, while others saw the reversal. The illusion is strong in the peripheral viewing. Fraser and Wilcox (1979) claimed that this individual difference depends on some genetic properties.



Adopted from “Alex Fraser, Geneticist and Painter”
(http://doctoralexfraser.blogspot.jp/p/spirals.html) <access August 25, 2012> (with permission from Alan Fraser)

Alex Fraser (1923-2002) was a geneticist and a painter.

Fogel, D. B. (2002). In Memoriam: Alex S. Fraser (1923–2002). IEEE Transactions on Evolutionary Computation, 6(5), 429-430.


2. Faubert and Herbert (1999)

The left disk appears to rotate clockwise while the right one counterclockwise. Faubert and Herbert (1999) reported only illusory motion from dark to light along a luminance gradient. They attributed the illusory motion to the assumed time difference between responses to black and white.

References

Faubert, J. and Herbert, A. M. (1999). The peripheral drift illusion: A motion illusion in the visual periphery. Perception, 28, 617-621.


3. Naor-Raz and Sekuler (2000)

The left disk appears to rotate clockwise while the right one counterclockwise. Naor-Raz and Sekuler (2000), too, reported only illusory motion from dark to light along a luminance gradient. They revealed that the illusion magnitude is a positive, nearly linear function of contrast.

References

Naor-Raz, G. and Sekuler, R. (2000). Perceptual dimorphism in visual motion from stationary patterns. Perception, 29, 325-335.


This disk appears to rotate clockwise.

This color illusion image presented by Naor-Raz and Sekuler (2000) (shown below) might be attributable to this type.
http://www.perceptionweb.com/perception/perc0300/sekuler.jpg <access August 26, 2012>
<with permission from Robert Sekuler>


4. Kitaoka and Ashida (2003)

The left disk appears to rotate counterclockwise while the right one clockwise. Kitaoka and Ashida (2003) proposed that the illusory motion is strong when patterns are arranged in the following luminance order: from black, dark-gray, white, light-gray, and back to black.

References

Kitaoka, A. and Ashida, H. (2003). Phenomenal characteristics of the peripheral drift illusion. VISION (Journal of the Vision Society of Japan), 15, 261-262. PDF


5. Kitaoka (2007)



high-resolution file

Kitaoka (2007) classified the Fraser-Wilcox illusion into Type I, IIa, IIb and III, in each of which the dark-to-light type was distinguished from the light-to-dark one.

References

Kitaoka, A. (2007) Phenomenal classification of the “optimized” Fraser-Wilcox illusion and the effect of color. Poster presentation in DemoNight, VSS2007, GWiz, Sarasota, Florida, USA, May 14, 2007.



Type I


"Dark to light"

The left disk appears to rotate counterclockwise while the right one clockwise.



"Light to dark"

The left disk appears to rotate counterclockwise while the right one clockwise.


"Dark to light" and "light to dark" combined
The left disk appears to rotate counterclockwise while the right one clockwise.


"Dark to light" and "light to dark" combined, with color enhancement
The left disk appears to rotate counterclockwise while the right one clockwise.


The upper-left, upper-right, and lower-middle disks appear to rotate counterclockwise while the rest clockwise.

Type I (six disks) 1500 x 1000 (pixel)

Type I (six disks) 6000 x 4000 (pixel)



「カメの回転」

カメの集団が回転して見える。そのほか、左右に動いて見える錯視や、垂直・水平に並んだエッジが傾いて見える錯視もある。

Copyright Akiyoshi .Kitaoka 2006 (June 19)


Type II

Type IIa

The upper-left, upper-right, and lower-middle disks appear to rotate counterclockwise while the rest clockwise.


Type IIb

The upper-left, upper-right, and lower-middle disks appear to rotate counterclockwise while the rest clockwise.


Type IIa (six disks) 1500 x 1007 (pixel)

Type IIa (six disks) 6000 x 4031 (pixel)


Type IIb (six disks) 1500 x 1000 (pixel)

Type IIb (six disks) 6000 x 4000 (pixel)


「雷さんの打ち上げ」

中央部が盛り上がってくるように見える。

Copyright Akiyoshi Kitaoka 2008 (August 12)


JAGDA Yokohama トーク&セミナー用(2016年9月10日)の配布プリントの最初のバージョンを撮影したもの。facebookにアップしたところおもしろいことに気づいた(2016年9月2日)。

Copyright Akiyoshi Kitaoka 2016 (September 2)


修学館・錯視プロジェクト研究室にて撮影


「盛り上がって見える印刷物」

印刷物の中央が盛り上がっていくように見える。

Copyright Akiyoshi Kitaoka 2016 (September 4)





「れんこんの回転」

れんこんが回転して見える。

Copyright Akiyoshi Kitaoka 2012 (November 23)

岩国名物だとか。


「れんこんの回転」(最適化型フレーザー・ウィルコックス錯視・タイプIIa)の作り方


「打ち上げ」

金属的なものが迫ってくるように見える。丸を除くとすべての線は垂直・水平に描かれているが、中央部は外に凸に見えるように傾いて見える。

Copyright Akiyoshi Kitaoka 2008 (January 20)

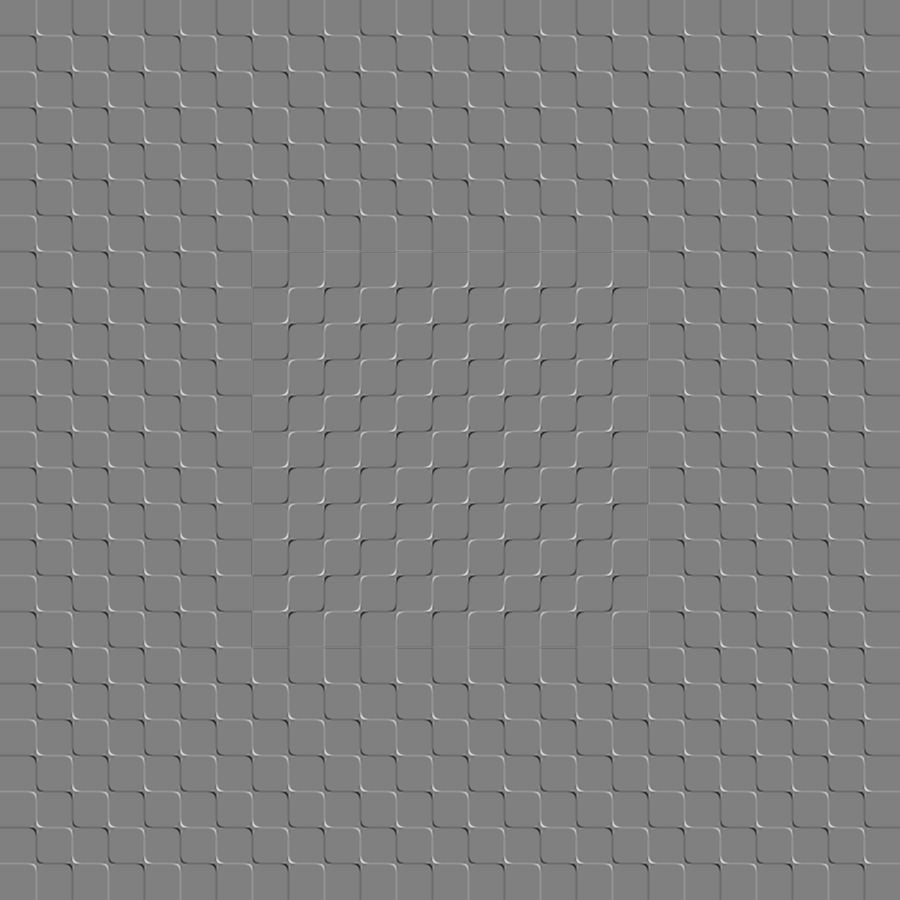

「羽虫のシールド」

ドット以外はすべて垂直・水平成分でできているが、丸みや立体感が感じられる。

Copyright A.Kitaoka 1999


グラフィックスの透明プロパティを用いた最適化型フレーザー・ウィルコックス錯視の作り方

Copyright Akiyoshi Kitaoka 2016 (September 5)





拡大

Copyright Akiyoshi Kitaoka 2016 (September 5)


縮小


「泥火山」

内側は拡大、外側は縮小して見える。

Copyright Akiyoshi Kitaoka 2016 (September 5)


「雷さんの打ち上げ」

中央部が盛り上がってくるように見える。

Copyright Akiyoshi Kitaoka 2008 (August 12)




の透明変換(CorelDRAW ver.14 でいうところの「赤」変換)


Type III


The upper row appears to move rightward while the lower one leftward.


Type III (two rows) 1500 x 400 (pixel)

Type III (two rows) 4500 x 1200 (pixel)Type III  4500 x 1200


The upper-left, upper-right, and lower-middle disks appear to rotate counterclockwise while the rest clockwise.



「影付きの左右に動く蛇」

蛇が左右に動いて見える。

Copyright Akiyoshi Kitaoka 2009 (June 7)


6. Kitaoka (2008a, b)

"Type IV" was added to the list.

References

Kitaoka, A. (2008a). Optimized Fraser-Wilcox illusions: a pictorial classification by Akiyoshi Kitaoka. Talk in Workshop No.005 "Experimental studies of anomalous motion illusions" in the 72nd Annual Convention of the Japanese Psychological Association, Hokkaido University, Sapporo, Japan, September 19, 2008. Talk

Kitaoka, A. (2008b). A new type of the optimized Fraser-Wilcox illusion in a 3D-like 2D image with highlight or shade. Journal of Three Dimensional Images (Japan), 22(4), 31-32. PDF PDF (manuscript) Presentation

Type IV



"Rotating tablets"

Rings appear to rotate.

Copyright Akiyoshi Kitaoka 2011 (July 14)



The upper-left, upper-right, and lower-middle rings appear to rotate counterclockwise while the rest clockwise.

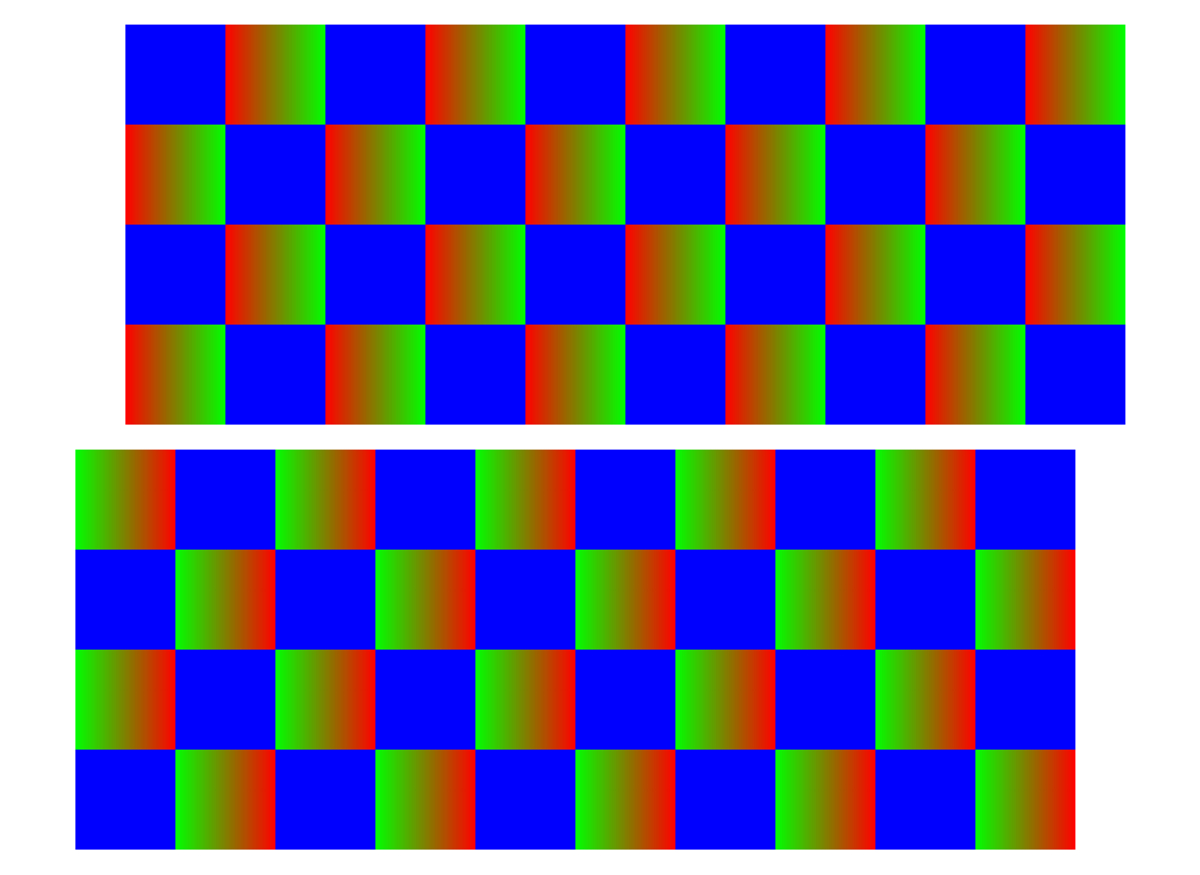

色依存のフレーザー・ウィルコックス錯視

Black » dark-gray » white » light-gray » black
Purple » light purple » light red-purple » red » purple

References

Kitaoka, A. (2010). Introduction to visual illusion. Tokyo: Asakura-shoten (in Japanese). Book

Kitaoka, A. (2012a). Designs using the red Fraser-Wilcox illusion. Journal of the Color Science Association of Japan, 36, Supplement, 188-189. PDF (color manuscript) Talk

Kitaoka, A. (2012b) The Fraser-Wilcox illusion and its extension. Perception 41 ECVP Abstract Supplement, page 91 (Poster September 3, 2012). Poster PDF

Kitaoka, A. (2014). Color-dependent motion illusions in stationary images and their phenomenal dimorphism. Perception, 43(9), 914-925.


Kitaoka, A. (2014). Color-dependent motion illusions in stationary images and their phenomenal dimorphism. Perception, 43(9), 914-925.



Figure 6 of Kitaoka, A. (2014). Color-dependent motion illusions in stationary images and their phenomenal dimorphism. Perception, 43(9), 914-925.



"Rotating red disks"

Each disk appears to rotate clockwise when this image is presented on a bright PC display or on a print with a bright environment.

Copyright Akiyoshi Kitaoka 2013 (January 17)


Copyright Akiyoshi Kitaoka 2008 (June 21)



「オニシバリの実の回転」

オニシバリの実のリングが回転して見える。

Copyright Akiyoshi Kitaoka 2008 (December 19)



「不動明王 2012」

ディスクが時計回りに回転して見える。

Copyright Akiyoshi Kitaoka 2012 (December 3)



「赤と紫の円盤の回転」

明るいディスプレーでは円盤は時計回りに回転して見える。印刷物を暗いところで見ると反時計回りに回転して見える。

Copyright Akiyoshi Kitaoka 2013 (February 6)



「赤とシアンの円盤の回転 3」

明るいディスプレーでは円盤は時計回りに回転して見える。印刷物を暗いところで見ると反時計回りに回転して見える。

Copyright Akiyoshi Kitaoka 2014 (January 27)



「赤と緑の円盤の回転 2」

明るいディスプレーでは円盤は時計回りに回転して見える。印刷物を暗いところで見ると反時計回りに回転して見える。

Copyright Akiyoshi Kitaoka 2014 (January 27)


最適化型フレーザー・ウィルコックス錯視・タイプVの作品いろいろ


最新の研究

Kitaoka, A. (2014). Motion illusion induced by color changes. 10th Asia-Pacific Conference on Vision (APCV), Sunport Takamatsu, Takamatsu, Japan, (Poster July 20, 2014 (P2-16)). Poster MS-Word doc file --- Movie demos

< Kitaoka, A. (2014). Motion illusion induced by color changes. Vision, APCV2014, p. 111 (P2-16). >

Dark type

<Example> The upper-left, upper-right, and lower-middle disks appear to rotate counterclockwise while the rest clockwise.

Kitaoka, A. (2012). The Fraser-Wilcox illusion and its extension. Perception 41 ECVP Abstract Supplement, page 91 (Poster September 3, 2012). Poster PDF




2つの並置混色系を用いた明度知覚の錯視


「RGBで白と黒」

左の絵の髪と服は白く見え、右の絵では黒く見えるが、同じRGBの縞模様である。

Copyright Akiyoshi Kitaoka 2016 (August 15)

拡大画像


原図




「CMYで白と黒」

左の絵の髪と服は白く見え、右の絵では黒く見えるが、同じCMYの縞模様である。

Copyright Akiyoshi Kitaoka 2016 (August 15)


北岡明佳 (2016) RGBを原色とする減法混色の並置混色のアルゴリズムとその応用 日本視覚学会2016年夏季大会 朱鷺メッセ(新潟コンベンションセンター)(新潟市)・2016年8月18日(木) Poster --- Visiome


並置混色を視覚系はどう解釈するか?

仮説

1. 最も輝度コントラストの高い領域をアンカーとする。

2. 輝度コントラストの低い領域の輝度が低ければ加法混色系と解釈し、輝度コントラストの低い領域の輝度が髙ければ減法混色系と判断する。

3. 加法混色系と解釈された画像のアンカーは白と解釈し、減法混色系と解釈された画像のアンカーは黒と解釈する。

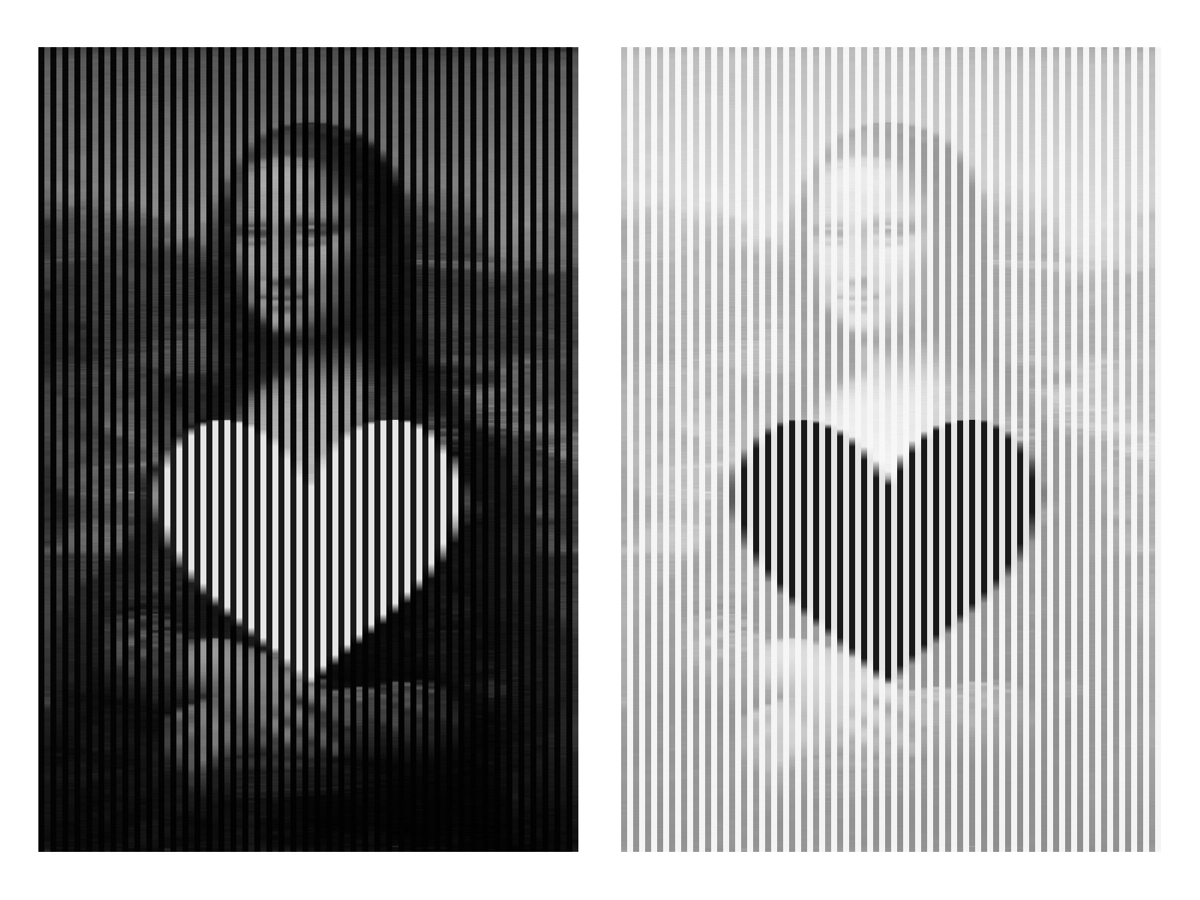

「白いハートと黒いハート」

左のハートは白く見え、右のハートは黒く見えるが、同じ白黒の縞模様である。

Copyright Akiyoshi Kitaoka 2017 (August 18)


Copyright Akiyoshi Kitaoka 2018 (January 14)


並置混色とムンカー錯視の関係


左のハートと物理的に同じ色は(1)(2)(3)のうちどれでしょう。


問1

解答



問2

解答



問3

解答



問4

解答


2012/8/17


ムンカー錯視を用いた作品「赤の渦巻き」↓

赤紫がかった赤い螺旋とオレンジ色がっかった赤い螺旋があるように見えるが、どちらも同じ赤である。

Copyright A.Kitaoka 2002


ムンカー錯視を用いた作品「緑の渦巻き」↓

黄緑の螺旋と青緑の螺旋があるように見えるが、どちらも同じ緑である。

Copyright A.Kitaoka 2002


ムンカー錯視を用いた作品「水色と黄緑の渦巻き」↓

水色の螺旋と黄緑の螺旋があるように見えるが、どちらも同じ色(r = 0, g = 255, b = 150)である。この色の錯視はモニエ・シェベル錯視に近いと思うが、彼らの理論には合わないのかもしれない。

Copyright A.Kitaoka 2003


ムンカー錯視(Munker illusion)

黄と青の縞の青部分に赤を乗せるとオレンジ色に見え、黄部分に赤を乗せると赤紫がかって見える。緑を乗せるとそれぞれ黄緑と青緑に見える。高空間周波数図形で錯視量が多い。

Munker, H. (1970) Farbige Gitter, Abbildung auf der Netzhaut und übertragungstheoretische Beschreibung der Farbwahrnehmung. München: Habilitationsschrift.

ムンカー錯視のページ


ムンカー錯視の作り方



Left: Blue (assimilation) + Blue (contrast of yellow) = Blue induction; Right: Yellow (assimilation) + Yellow (contrast of blue) = Yellow induction


「レモン色の渦巻きとクリーム色の渦巻き」

渦巻きにはレモン色のとクリーム色のと2種類あるように見えるが、どちらも同じ黄色(R255, G255, B0)である。

Copyright A.Kitaoka 2005 (May 22)


「武田信玄」

薄い黄色と濃い青色の渦巻きがあるように見えるが、左半分は白(R=255, G=255, B=255)と黒(R=0, G=0, B=0)であるのに対し、右半分は黄(R=255, G=255, B=0)と青(R=0, G=0, B=255)である。

Copyright Akiyoshi .Kitaoka 2007 (March 12)

「風林火山」

「武田信玄」の白黒黄青と同じであるが、この図では違いがはっきりわかる。

Copyright Akiyoshi .Kitaoka 2007 (March 12)


「小家族」

左の鳩も右の鳩も同じ色なのだが、左の方は黄味がかって見える。

Copyright Akiyoshi .Kitaoka 2007 (March 12)


Left: Green (assimilation) + Red (contrast of cyan) = Yellow induction; Right: Cyan (assimilation) + Magenta (contrast of Green) = Blue induction

OK?


色の土牢錯視 (Chromatic dungeon illusion)

「犬」

赤い犬は2種類、緑の犬も2種類いるように見えるが、それぞれ同じ赤と緑である。色の土牢錯視である。
別バージョン  別バージョン2

Copyright Akiyoshi .Kitaoka 2007 (January 5)

土牢錯視(dungeon illusion)(Bressan, 2001)とは?

左の「牢屋」の灰色のダイヤモンド形は右のよりも明るく見えるが、物理的には同じ明るさである。

Bressan, P. (2001) Explaining lightness illusions. Perception, 30, 1031-1046.


色の土牢錯視とは?

左の「牢屋」のダイヤモンド形はオレンジ色に、右のは少し紫がかった赤に見えるが、物理的には同じ色である。

引用文献は調査中(ないかもしれない)

色の土牢錯視は雰囲気はムンカー錯視だが、普通に色の同化で説明することも可能だし、ゲシュタルト要因を考えて色の対比というのもあるのかもしれない。


「四色の犬」

上から1番目と3番目の列の犬は2種類、2番目と4番目の列の犬も2種類いるように見えるが、それぞれ同じ色である。色の土牢錯視である。

Copyright Akiyoshi .Kitaoka 2007 (January 5)



「4種類の色の錯視の作り方」

物理的に同じ色(R=255, G=0, B=127)のハートが錯視によってピンクとオレンジのハートに見える。左から、ムンカー錯視(Munker illusion)、色の土牢錯視(chromatic dungeon illusion)、ドット色錯視(dotted color illusion)、デヴァロイス・デヴァロイス錯視(De Valois-De Valois illusion)である。 上図の高解像度ファイルはこちら(8000 x 3262 pixel, 10MB)。

Copyright Akiyoshi Kitaoka 2009 (June 1)

References

Munker illusion Munker, H. (1970) Farbige Gitter, Abbildung auf der Netzhaut und übertragungstheoretische Beschreibung der Farbwahrnehmung. Habilitationsschrift, Ludwig-Maximilians-Universität, München.
chromatic dungeon illusion For the dungeon illusion: Bressan, P. (2001) Explaining lightness illusions. Perception, 30, 1031-1046.
Kitaoka (2007) http://www.psy.ritsumei.ac.jp/~akitaoka/saishin22e.html
dotted color illusion For the dotted brightness illusion: White, M. (1982) The assimilation-enhancing effect of a dotted surround upon a dotted test region. Perception, 11, 103-106.
Kitaoka (2008) http://www.psy.ritsumei.ac.jp/~akitaoka/color10e.html
De Valois-De Valois illusion De Valois, R. L. and De Valois, K. K. (1988) Spatial Vision. New York: Oxford University Press.


北岡明佳 (2012) 色の錯視いろいろ (4) 簡単で錯視量の多い色相の錯視図形の作り方 日本色彩学会誌, 36(1), 45-46. PDF(スキャンコピー) <配布資料>


「標準的なムンカー錯視」

左のハートは赤紫に見え、右のハートはオレンジ色に見えるが、同じ赤である。

Copyright Akiyoshi Kitaoka 2015 (June 2)




下図は拡大画像



「加法混色の並置混色によるムンカー錯視の説明図」

Copyright Akiyoshi Kitaoka 2016 (March 22)




「減法混色の並置混色によるムンカー錯視の説明図」

Copyright Akiyoshi Kitaoka 2016 (March 22)


「標準的なムンカー錯視」

左のハートは赤紫に見え、右のハートはオレンジ色に見えるが、同じ赤である。

Copyright Akiyoshi Kitaoka 2015 (June 2)


オレンジ色に見える錯視の方はこのモデルにぴったり当てはまらない。

Copyright Akiyoshi Kitaoka 2017 (March 4)

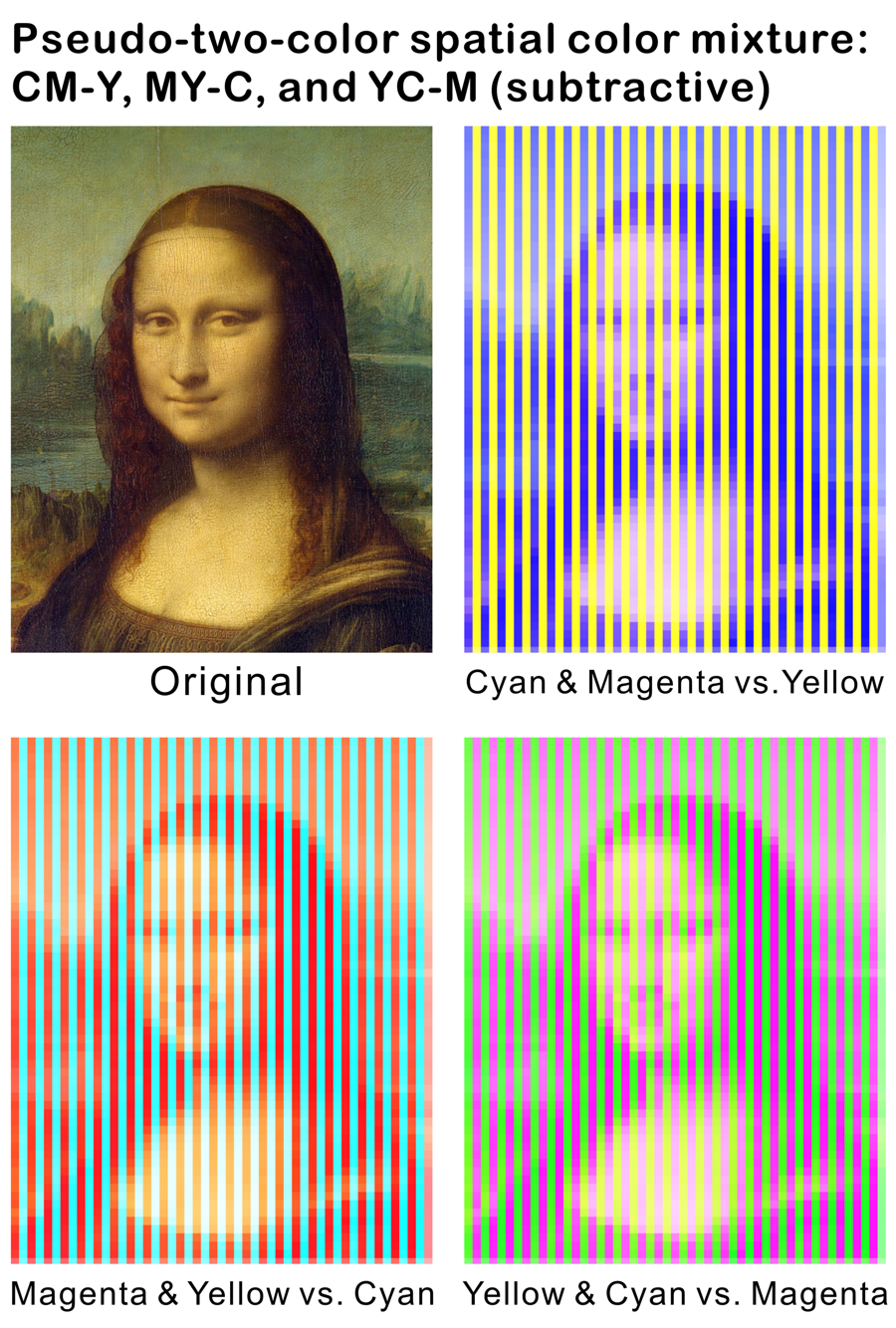

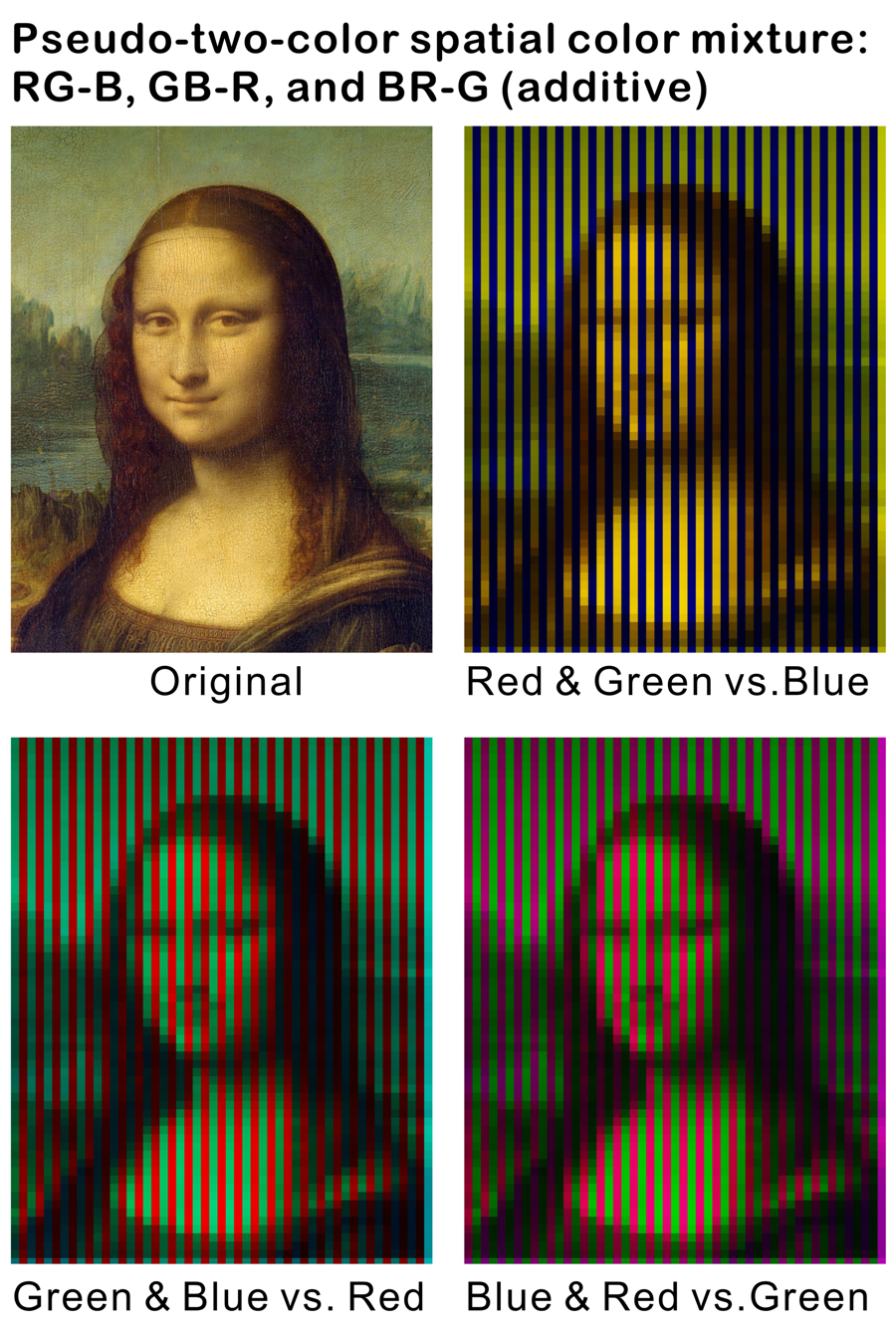

並置混色2色変換(加法混色と減法混色)

Copyright Akiyoshi Kitaoka 2017 (November 26)

Copyright Akiyoshi Kitaoka 2017 (November 26)


図地分離との関係?

北岡明佳 (2012) 色の錯視いろいろ (6) 図地分離による錯視 日本色彩学会誌, 36(3), 237-238. PDF(スキャンコピー)




加算的色変換による色の恒常性


(γ = 1.2, α = .48)


(sRGB, α = .48)

「赤く見えるいちご」

すべてのピクセルはシアン色近辺の色相であるが、イチゴは赤く見える。加法色はシアンで、透明度(アルファ値)は48%の加法的色変換。

Copyright Akiyoshi Kitaoka 2017 (September 2)


Copyright Akiyoshi Kitaoka 2017 (September 2)


Copyright Akiyoshi Kitaoka 2017 (March 15)


Copyright Akiyoshi Kitaoka 2017 (September 2)


Copyright Akiyoshi Kitaoka 2017 (September 2)



(γ = 1.2, α = .48)


(sRGB, α = .48)

「青く見えるいちご」

すべてのピクセルは黄色の色相であるが、イチゴは青く見える。加法色は黄色で透明度は48%の加法的色変換。

Copyright Akiyoshi Kitaoka 2017 (September 2)


Copyright Akiyoshi Kitaoka 2017 (September 2)


Copyright Akiyoshi Kitaoka 2017 (September 2)



乗法的色変換と加法的色変換


参考

sRGB 白色点 D65: x = 0.3127, y= 0.3290

R: x = 0.6400, y = 0.3300
G: x = 0.3000, y = 0.6000
B: x = 0.1500, y = 0.0600

<according to IEC 61966-2-1>


加算的色変換


「赤く見える(実際に赤い)いちごの色変換」

色の分布は全体としてシアン色側にシフトするが、イチゴは原画像と同様赤く見える。

Copyright Akiyoshi Kitaoka 2017 (March 16)

(乗算的色変換(普通の色変換)による画像)



(sRGB, α = .15)

Do you see the strawberries of this image reddish?

— Akiyoshi Kitaoka (@AkiyoshiKitaoka) 2017年8月19日

報告者 183人中、174人が赤く見え、9人が赤く見えませんでした。



(参考 α = 50%)


(sRGB, α = .18)



(sRGB, α = .38)


「RGBで白と黒」

左から、赤・黄・緑・青の目に見えるが、ほぼ同じ灰色である。

Copyright Akiyoshi Kitaoka 2016 (June 23)


静脈が青く見える錯視


「静脈錯視:腕」

この手の青く浮き出て見える静脈は物理的には青くなく、彩度の低いオレンジ色であった。

Copyright Akiyoshi Kitaoka 2014 (April 24)

Thanks to MK for your tremendous contribution!



「静脈錯視:腕 2」

青白く撮れた写真の場合でも、この手の青く浮き出て見える静脈は物理的には青くなく、彩度の低い黄色かオレンジ色であった。

Copyright Akiyoshi Kitaoka 2014 (April 24)


上図を 「逆変換」 すると下図となる。


Kitaoka, A. (2015). Color constancy and the vein color illusion. 38th European Conference on Visual Perception (ECVP) (Liverpool), Poster 2P1M060, August 25, 2015. Presentation (html) --- Poster (doc)



色収差依存の傾き錯視と色依存の静止画が動いて見える錯視

「静止画が動いて見える錯視と色収差依存の傾き錯視:赤と青(紫)」

上のブロックは右に動いて見え、下のブロックは左に動いて見える。ガクガクと動いて見える。メガネをかけている人は、ブロック内の水平の傾きが水平でなく見える。たとえば、凹レンズの人は、メガネの上の端を通してこの図を見ると、上のブロックでは、反時計回りに水平のエッジが傾いて見える。

Copyright Akiyoshi Kitaoka 2017 (December 24)

「静止画が動いて見える錯視と色収差依存の傾き錯視:赤と青(紫)<縦>」

左のブロックは上に動いて見え、右のブロックは下に動いて見える。ガクガクと動いて見える。メガネをかけている人は、ブロック内の垂直の境界が垂直でなく見える。たとえば、凹レンズの人は、メガネの左の端を通してこの図を見ると、左のブロックでは、反時計回りに垂直の境界が傾いて見え、右のブロックでは、時計回りに垂直の境界が傾いて見える。

Copyright Akiyoshi Kitaoka 2018 (January 14)

「静止画が動いて見える錯視と色収差依存の傾き錯視:緑と青」

上のブロックは右に動いて見え、下のブロックは左に動いて見える。なめらかに動いて見える。メガネをかけている人は、ブロック内の水平の傾きが水平でなく見える。たとえば、凹レンズの人は、メガネの上の端を通してこの図を見ると、上のブロックでは、反時計回りに水平のエッジが傾いて見える。

Copyright Akiyoshi Kitaoka 2017 (December 25)

「静止画が動いて見える錯視と色収差依存の傾き錯視:赤と緑」

なめらかな動きとしては、上のブロックは左に動いて見え、下のブロックは右に動いて見える。ガクガクとした動きが見える時は、上のブロックは右に動いて見え、下のブロックは左に動いて見える。メガネをかけている人は、上のブロックでは、ブロック内の水平の傾きが水平でなく見える。たとえば、凹レンズの人は、メガネの上の端を通してこの図を見ると、反時計回りに水平のエッジが傾いて見える。

Copyright Akiyoshi Kitaoka 2017 (December 27)

「静止画が動いて見える錯視と色収差依存の傾き錯視:赤・青・シアン」

動いて見えるようにも見えるが、よくわからない。メガネをかけている人は、ブロック内の水平の傾きが水平でなく見える。たとえば、凹レンズの人は、メガネの上の端を通してこの図を見ると、上のブロックでは、反時計回りに水平のエッジが傾いて見える。

Copyright Akiyoshi Kitaoka 2017 (December 27)


「色収差依存の傾き錯視:赤から緑のグラデーションと青」

メガネをかけている人は、ブロック内の水平の傾きが水平でなく見える。たとえば、凹レンズの人は、メガネの上の端を通してこの図を見ると、上のブロックでは、時計回りに水平のエッジが傾いて見える。動きの錯視はあるようには見えるが、一定しない。

Copyright Akiyoshi Kitaoka 2017 (December 25)


Copyright Akiyoshi Kitaoka 2017 (December 29)

Copyright Akiyoshi Kitaoka 2018 (January 14)


Copyright Akiyoshi Kitaoka 2017 (December 29), Copyright Akiyoshi Kitaoka 2018 (January 14)


Copyright Akiyoshi Kitaoka 2017 (December 29)


Copyright Akiyoshi Kitaoka 2017 (December 29)


「色収差依存の傾き錯視のモデル:モンタルボ錯視への還元」

上のブロック内の白黒縞は水平だが反時計回りに傾いて見え、下のブロックの白黒縞は水平だが時計回りに傾いて見える。

Copyright Akiyoshi Kitaoka 2017 (December 27)


モンタルボ錯視



傾き錯視と静止画が動いて見える錯視の随伴

「秋の沼をエンボス変換した画像と北岡明の顔画像の合成」

内側の領域が動いて見える。

Copyright Akiyoshi Kitaoka 2018 (January 4)


「秋の沼」
(再リメイク版)

中の正方形領域が動いて見える。

Copyright A.Kitaoka 2000, 2003, 2007, 2010


四色錯視・基本図形


四色錯視・基本図形のエンボス化


「トゲトゲドリフト錯視」

内側の正方形領域が動いて見える。内側の正方形領域が菱形に(垂直は右に、水平は左に傾いて)見える。

"Drifting spines illusion"

The inset appears to move. The inset is a square but verticals appear to tilt clockwise and horizontals appear to tilt clockwise.

Copyright Akiyoshi Kitaoka 2010 (July 6)



「エンボスドリフト錯視」
(サイン波型)

内側の正方形領域が動いて見える。

"Drifting Emboss illusion"
(sine type)

The inset appears to move.

Copyright Akiyoshi Kitaoka 2016 (February 15)


Kitaoka, A. (2010). The Fraser illusion family and the corresponding motion illusions. 33rd European Conference on Visual Perception (ECVP 2010), EPFL, Lausanne, Switzerland, 2010/8/22-26, 8/26 poster publication. Poster (Kitaoka, A. (2010) The Fraser illusion family and the corresponding motion illusions. Perception, 39, Supplement, #61, p. 178)




い

北岡明佳の錯視のページ


北岡明佳の著書一覧
