Slope illusion 8
Outdoor tilt illusion where an ascending slope appears to descend or a descending slope appear to ascend
e.g. Magnetic Hill in Canada; Wikipedia
since February 18, 2013
A survey of the illusory slope located in Nakatane-town, Tanegashima-island, Kagoshima-prefecture, Japan
February 2, 2013, reported by Akiyoshi Kitaoka and Seiichi Tsuinashi, supported by a JSPS kaken-hi grant and R-GIRO
The illusory slope in Nakatane-twon, Tanegashima-island
Copyright Akiyoshi Kitaoka 2013 (February 17) photo Fenruary 2, 2013
This slope is a loose descent (0.9 deg) toward the sea, but it appears to be an ascent.
The nearer slope appears to be an ascent but is a loose descent. This is evident considering the position of the horizon, as shown below.
This slope is a loose descent (0.9 deg) toward the sea, but it appears to be an ascent.
This road physically tilts down in the left direction, but it does not appear so.
This slope is a loose descent (0.9 deg) toward the sea, but it appears to be an ascent.
Isn't this slope an ascent toward the sea? No, it isn't, as shown below.
The nearer slope appears to be a descent but it is a loose ascent (0.9 deg). The farther slope is a steep ascent (5.7 deg).
The nearer slope appears to be a descent but it is a loose ascent (0.9 deg). The farther slope is a steep ascent (5.7 deg).
The farther slope appears to be an ascent toward the sea but it is a loose descent (0.9 deg). The nearer slope is a steep descent (5.7 deg).
(photo by Dr. Tsuinashi)
The farther slope appears to be an ascent toward the sea but it is a loose descent (0.9 deg). The nearer slope is a steep descent (5.7 deg).

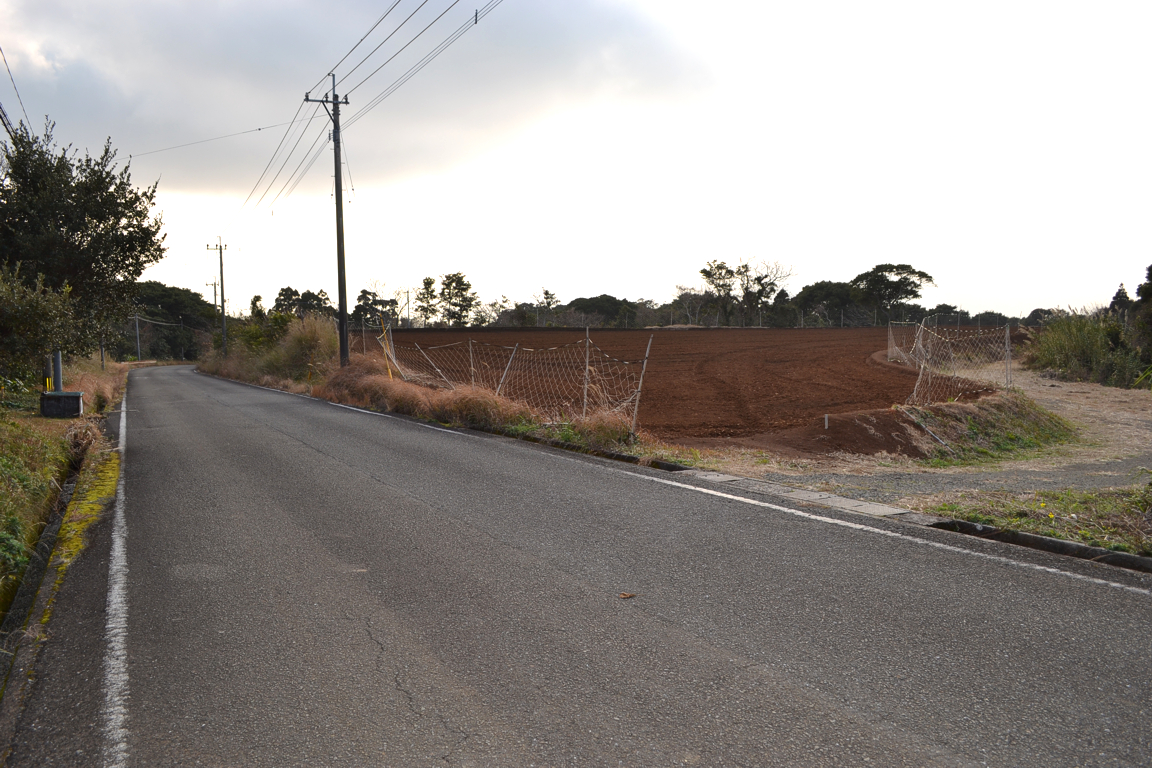

Slanting field
Probably the field is flat, but the farther side appears to be higher than the nearer one. Actually, the road is a steep descent.

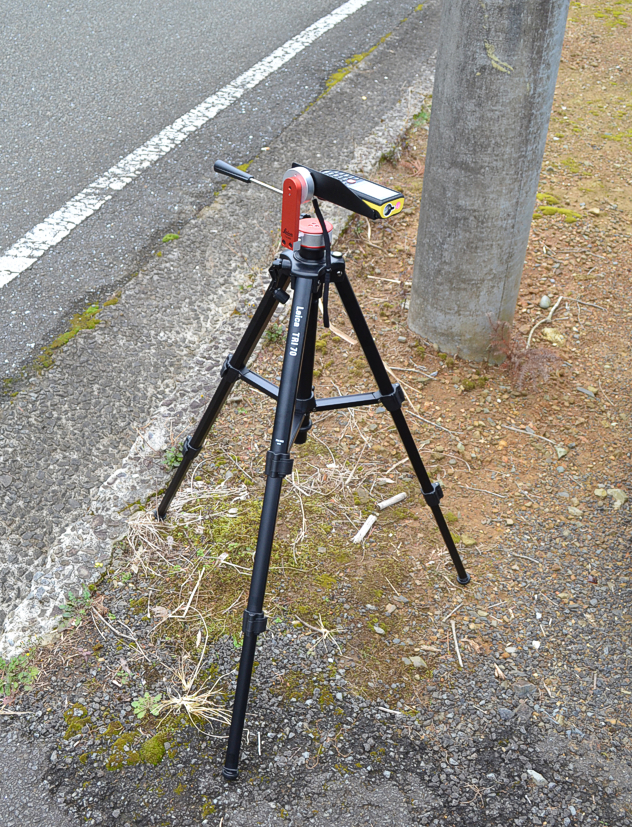

Our new machine to measure the slant of a road
Dr. Seiichi Tsuinashi was measuring the distance.
"Rock of a man (upper) and a chimpanzee (lower) viewed from the Tanegashima Space Center"
photo by Seiichi Tsuinashi 2013 (February 3)
Tanegashima Space Center
photo by
Seiichi Tsuinashi 2013 (February 3)
