Color-dependent motion illusions in stationary images:
What causes illusory motion?

Akiyoshi Kitaoka (Ritsumeikan University, Kyoto Japan)

since February 21, 2015 Handout 1 Handout 2

"Rotating snakes"

Each disk appears to rotate 'spontaneously' in the constant direction, from black to blue, white, yellow, back to black.

"Rotating snakes: a gray scale version"

Each disk appears to rotate 'spontaneously' in the constant direction, from black to dark gray, white, light gray, back to black.

"Rotating red disks"

Each disk appears to rotate 'spontaneously' in the constant direction, from dark purple to purple, light red purple, red, back to dark purple.

Gray scale versions give little or no effects.

Figure 6 of Kitaoka, A. (2014). Color-dependent motion illusions in stationary images and their phenomenal dimorphism. Perception, 43(9), 914-925.

"Color-dependent version of Rotating snakes"

Each disk appears to rotate 'spontaneously' in the constant direction, from dark purple to purple, light red purple, red, back to dark purple.

1. Fraser and Wilcox (1979)

Fraser, A. and Wilcox, K. J. (1979) Perception of illusory movement. Nature, 281, 565-566.

Ambiguity in the direction of illusory rotation

cf.

"Dress illusion" (February 2015) http://swiked.tumblr.com/post/112073818575/guys-please-help-me-is-this-dress-white-and

Ambiguity in the perceived color combination

Explanation given by @budoucha (Twitter) (presented with permission)

Inter Milan illusion

If you have interest in this topic, please visit my exhibition.

"Color Illusions Accompanied by Color Constancy Phenomena"
by Akiyoshi Kitaoka (Ritsumeikan University)

Fogel, D. B. (2002). In Memoriam: Alex S. Fraser (1923–2002). IEEE Transactions on Evolutionary Computation, 6(5), 429-430.

Alex Fraser's original work

Adopted with permission from Alan Fraser (2006) "Alex Fraser, Geneticist and Painter" http://doctoralexfraser.blogspot.jp/

A 'simplified' image showing ambiguation

Darkening disambiguation

Darkening disambiguation does not require luminance gradient

Kitaoka, A. (2012). The Fraser-Wilcox illusion and its extension. Perception 41 ECVP Abstract Supplement, page 91 (Poster September 3, 2012). Poster PDF

Disambiguation by lowering contrast

Kitaoka, A. (2012). The Fraser-Wilcox illusion and its extension. Perception 41 ECVP Abstract Supplement, page 91 (Poster September 3, 2012). Poster PDF

2. Faubert and Herbert (1999)

Faubert, J. and Herbert, A. M. (1999) The peripheral drift illusion: A motion illusion in the visual periphery. Perception, 28, 617-621.

3. Naor-Raz and Sekuler (2000)

Naor-Raz, G. and Sekuler, R. (2000) Perceptual dimorphism in visual motion from stationary patterns. Perception, 29, 325-335.

4. Kitaoka and Ashida (2003)

Kitaoka, A. and Ashida, H. (2003) Phenomenal characteristics of the peripheral drift illusion. VISION (Journal of the Vision Society of Japan), 15, 261-262. PDF

Perceptual dimorphism in motion direction can be explained assuming two independent illusions canceling each other in the original Fraser-Wilcox illusion.

"Dark to light" (within luminance gradient) might be stronger.

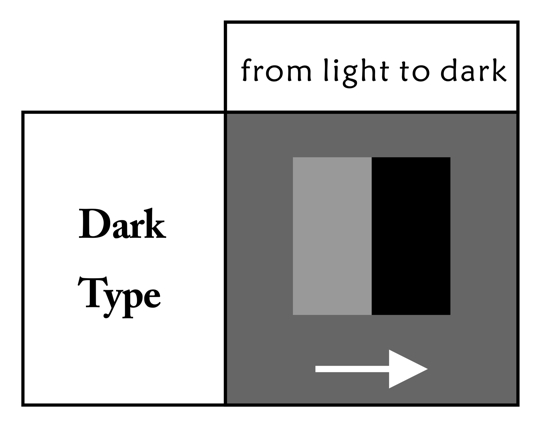

"Light to dark" might be stronger.

"Dark to light"

"Light to dark"

"Dark to light" and "light to dark" are combined

Luminance gradient type

Empirical observation that color enhances the illusion in some conditions.

Observation 1. The illusion from dark to light is enhanced by red or blue.

Observation 2. The illusion from light to dark is enhanced by yellow or green.

Observation 3. The illusion from dark to light is enhanced by red or blue, while the illusion from light to dark is enhanced by yellow or green. Both illusions work additively.

The upper-left, upper-right, and lower-middle disks appear to rotate counterclockwise while the rest clockwise.

Luminance step type (Type II) included

"Rollers"

Rollers appear to rotate without effort. On the other hand, they appear to rotate in the opposite direction when observers see this image keeping blinking.

"Dongururin"*

*Rotation of donguri (acorns). "Gururin" means rotation.

Rings of donguri appear to rotate.

"Rotating snakes"

Each disk appears to rotate 'spontaneously' in the constant direction, from black to blue, white, yellow, back to black.

Age and illusion

Another luminance step type

Type	Basic illusion that motion direction is from dark to light	Basic illusion that motion direction is from light to dark	Examples (click the thumbnail)
III

"Moving snakes with shadows"

Snakes appear to move horizontally.

Highlight and shadow type

Type	Basic illusion that motion direction is from dark to light	Basic illusion that motion direction is from light to dark	Examples (click the thumbnail)
IV new!

"Rotating tablets"

Rings appear to rotate.

Color-dependent type

Figure 6 of Kitaoka, A. (2014). Color-dependent motion illusions in stationary images and their phenomenal dimorphism. Perception, 43(9), 914-925.

Illusion remains when the image is not blurred.

Illusion remains when the darkest and lightest strips are achromatic.

No or weak illusion when the long-wavelength and short-wavelength color regions are achromatic.

Illusion occurs when red and blue are combined.

Illusion is triggered by moving images, blinks or eye movements.

Yanaka, K. and Hilano, T. (2011). Mechanical shaking system to enhance "Optimized Fraser–Wilcox Illusion Type V". Perception, 40, ECVP Abstract Supplement, page 171.

Illusion is reversed depending on luminance or light/dark adaptation.

Kitaoka, A. and Yanaka, H. (2013). Reversal of the color-dependent Fraser-Wilcox illusion under a dark condition. Perception 42 (36th) ECVP (Bremen) Abstract Supplement, page 97 (Poster August 27, 2013). Poster PDF

Illusion is reversed depending on the change of luminance.

Twitching illusion

Kitaoka, A. (2014). A new type of the color-dependent Fraser-Wilcox illusion. Perception 43 (37th) ECVP (Belgrade) Abstract Supplement, page 20 (Poster #17 August 25, 2014). Presentation (html) --- Poster (doc) --- Handout (doc) --- Illusion Night Handout (jpeg) --- Illusion Night Questionnaire (docx)

(Ellipses: R255, G0, B0; Background: R140, G140, B140)
Illusory clockwise rotation is observed.

(Ellipses: R255, G0, B0; Background: R200, G0, B255)
Illusory clockwise rotation is observed.

(Ellipses: R255, G0, B0; Background: R140, G140, B255)
Illusory clockwise rotation is observed.

(Ellipses: R255, G0, B0; Background: R0, G180, B255)
Illusion appears to be weak.

(Ellipses: R255, G0, B0; Background: R0, G200, B0)
Illusion appears to be weak.

(Ellipses: R255, G0, B0; Background: R140, G140, B0)
Illusory clockwise rotation is observed.

(Ellipses: R255, G0, B0; Background: R200, G130, B130)
Illusory clockwise rotation is observed.

Red might play an important role in the twitching illusion.

a related phenomenon

Fading-dependent motion illusion

Kitaoka, A. (2014). Motion illusion induced by color changes. 10th Asia-Pacific Conference on Vision (APCV), Sunport Takamatsu, Takamatsu, Japan, (Poster July 20, 2014 (P2-16)). Poster MS-Word doc file --- Movie demos

(GIF)

(Flash)

rotredcyandisks3-m01.swf

(MOV)

rotredcyandisks3-m01s4.mov

Each disk appears to rotate clockwise during fading-in while counterclockwise during fading-out.

Color change-dependent motion illusion #1

(GIF)

(FLASH)

rotredcyandisks3-m04.swf

(MOV)

rotredcyandisks3-m04b.mov

(Blue RGB = 0, 150, 255)

Color change-dependent motion illusion #2

(GIF)

(FLASH)

rotredcyandisks3-m05.swf

(MOV)

rotredcyandisks3-m05b.mov

(Red RGB = 255, 0, 0)

Achromatic version does not work.

(GIF)

(Flash)

rotredpurpledisksG2-m01.swf

(GIF)

(Flash)

rotredpurpledisksG2-m02.swf

Little or no illusion

(GIF)

"On-off rotating snakes: red and sky blue #1"

When fading in, each disk appears to rotate in the direction: black, red, white, sky blue, black. The direction is reversed when fading out.

"On-off rotating snakes: red and sky blue #2"

When fading in, each disk appears to rotate in the direction: black, sky blue, white, red, black. The direction is reversed when fading out.

(Flash)

"On-off rotating snakes: red and sky blue #1"

When fading in, each disk appears to rotate in the direction: black, red, white, sky blue, black. The direction is reversed when fading out.

"On-off rotating snakes: red and sky blue #2"

When fading in, each disk appears to rotate in the direction: black, sky blue, white, red, black. The direction is reversed when fading out.

"Rotating Jasmina's cake by fade-in and -out"

Each cake appears to rotate clockwise in fade-in phases while it appears to rotate counterclockwise in fade-out phases.

"Rotating Jasmina's cake"

Each cake appears to rotate clockwise on a PC display, while it appears to rotate counterclockwise in a print under dark illumination.

There is a similarity in stimulus configuration between Type IIa and reverse phi (or Gregory and Heard's (1983) phenomenal phenomena), and I made Type IIb to match Anstis and Rogers' (1975) "phi movement".

"Luminance-change-dependent motion illusion"

Reverse phi

Anstis S M, 1970 "Phi movement as a subtraction process" Vision Research 10 1411-1430

Gregory and Heard's (1983) phenomenal phenomena

Gregory R L, Heard P F, 1983 "Visual dissociations of movement, position, and stereo depth: Some phenomenal phenomena" Quarterly Journal of Experimental Psychology 35A 217-237

Anstis and Rogers' (1975) "phi movement"

Anstis S M, Rogers B J, 1975 "Illusory reversal of visual depth and movement during changes of contrast" Vision Research 15 957-961

Formula of the luminance-change-dependent motion illusion:
The relationship between luminance changes and illusory motion

Kitaoka, A. (2006) Configurational coincidence among six phenomena: A comment on van Lier and Csatho (2006). Perception, 35, 799-806. animations

Illusion is reversed depending on the change of luminance: brightening-induced illusory motion and darkening-induced one.

Speculation

Assumption: Some triggers such as blinks, eye movement or swaying the image turn off the input of visual images and then turn on it.

Illusion in a bright condition

(1) The brightening-induced illusory motion is predomoinant over the darkening-induced one for unkown reason.
(2) According to unknown reason, red is the slower starter in brightness after turning-on than blue.
(3) This delayed change induces illusory motion according to the formula of the luminance-change-dependent motion illusion.

Illusion in a dark condition

(1) The darkening-induced illusory motion is predomoinant over the brightening-induced one for unkown reason.
(2) According to the Purkinje shift, blue decays more slowly than red during turning-off.
(3) This delayed change induces illusory motion according to the formula of the luminance-change-dependent motion illusion.
