Stereograms 3

Free-fuse each pair of neighbors. Then you will see a stereoscopic object.

since August 22, 2006


Stereograms with noniuses

The girl appears to be behind the tanuki if observers see the images with uncross fuse.


The girl appears to be behind the tanuki if observers see the images with cross fuse.

Copyright Akiyoshi Kitaoka 2008 (June 19)


"'Knocked-face' illusion in stereo"

When a pair of eyes and one of mouths appear to leave the original plane in depth, the 'knocked-face' illusion decreases.

Copyright Akiyoshi Kitaoka 2008 (February 27)

----------
One of my students reported that he had come across a web site that exhibits a number of pictures of the "knocked-face" illusion as examples of "double vision". Double vision or diplopia is a disease that patients see a single thing double.

However, I believe that this illusion should not be called "double vision" because visual illusion is not a disease. It would be OK if this illusion was called "the illusion of double vision" for example. This illusion is a new type of anomalous motion illusions such as the Ouchi illusion and "Rotating snakes".

Anyway, I will keep searching who first discovered this illusion. If you know, please let me know! <January 12, 2008>

Ouchi illusion

Rotating snakes (part)


"A Happy New Year 2008"

Pieces of snow have binocular disparities.

Copyright Akiyoshi Kitaoka 2007 (December 29)


"Cross-fuser"

The eyes appear to converge.

Motion illusion: The inset of the left image appears to slide rightward while that of the right image leftward.

Binocular stereopsis: When fusing the two images, cross-fusers see the inset in front of the surround. The reversal is observed for uncross-fusers.1)

Copyright Akiyoshi Kitaoka 2007 (March 20)

1)Gregory R L, Heard P F, 1983 gVisual dissociations of movement, position, and stereo depthh Quarterly Journal of Experimental Psychology 35A 217-237

Kitaoka, A. (2006) Anomalous motion illusion and stereopsis. Journal of Three Dimensional Images (Japan), 20, 9-14. PDF (manuscript but the same as the printed one)

Kitaoka, A., Ashida, H., and Murakami, I. (2005) Does the peripheral drift illusion generate illusory motion in depth? Journal of Three Dimensional Images (Tokyo), 19, 6-8. PDF (scanned copy) (poor quality) --- MS-DOS file (manuscript, the same as the paper) (high quality) --- PDF (manuscript, the same as the paper) (lower quality)


"Uncross-fuser"

The eyes appear to diverge.

Motion illusion: The inset of the left image appears to slide leftward while that of the right image rightward.

Binocular stereopsis: When fusing the two images, uncross-fusers see the inset in front of the surround. The reversal is observed for cross-fusers.1)

Copyright Akiyoshi Kitaoka 2007 (March 20)

1)Gregory R L, Heard P F, 1983 gVisual dissociations of movement, position, and stereo depthh Quarterly Journal of Experimental Psychology 35A 217-237

Kitaoka, A. (2006) Anomalous motion illusion and stereopsis. Journal of Three Dimensional Images (Japan), 20, 9-14. PDF (manuscript but the same as the printed one)

Kitaoka, A., Ashida, H., and Murakami, I. (2005) Does the peripheral drift illusion generate illusory motion in depth? Journal of Three Dimensional Images (Tokyo), 19, 6-8. PDF (scanned copy) (poor quality) --- MS-DOS file (manuscript, the same as the paper) (high quality) --- PDF (manuscript, the same as the paper) (lower quality)


"Sliding tiles 3D"

Motion illusion: The inset of the left image appears to slide rightward while that of the right image leftward.

Binocular stereopsis: When fusing the two images, cross-fusers see the inset in front of the surround. The reversal is observed for uncross-fusers.1)

Copyright Akiyoshi Kitaoka 2006 (August 22)

1)Gregory R L, Heard P F, 1983 gVisual dissociations of movement, position, and stereo depthh Quarterly Journal of Experimental Psychology 35A 217-237


"3D-wave of the autumn color swamp"

The image appears to wave in depth.

Copyright Akiyoshi.Kitaoka 2006 (August 22)


"Torii of the Shimogamo shrine"

Three circles or three round windows are observed.

Copyright Akiyoshi.Kitaoka 2006 (August 22)

Shimogamo shrine


"Sakushi space or the roof of sakushi"*

*Sakushi (These Chinese characters) = visual illusion

Uncross-fusers see the space of sakushi while cross-fusers encounter a roof of sakushi.

Copyright Akiyoshi.Kitaoka 2006 (August 22)


"Circle"

A circle or a round window can be seen.

Copyright Akiyoshi.Kitaoka 2006 (August 22)

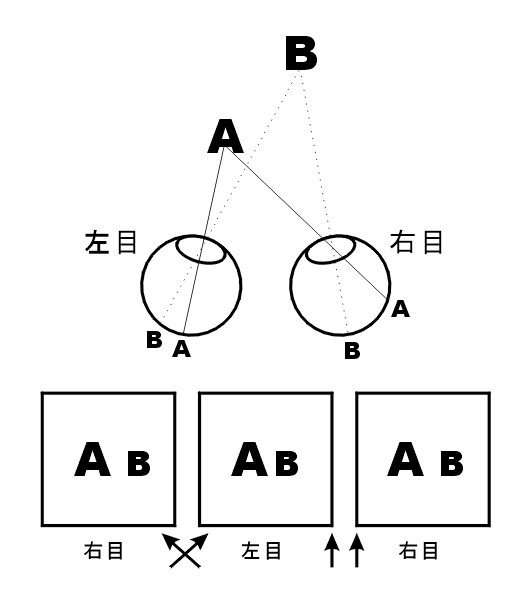

"Explanation of binocular stereopsis"

When A is nearer to the observer than is B, the image of A is projected to a more temporal part in each retina than that of B (binocular disparity). Based upon this disparity, the brain produces binocular stereopsis of the positions of A and B.

Copyright Akiyoshi.Kitaoka 2006 (June 30)

means the right eye in Japanese (probably also in Chinese), whilemeans the left eyes.
