Reversed phi and related motion phenomena
(リバースファイなど)

Anstis, S. M. (1970). Phi movement as a subtraction process. Vision Research, 10, 1411-1430. https://www.sciencedirect.com/science/article/pii/0042698970900921

Anstis, S. M. & Rogers, B. J. (1975). Illusory reversal of visual depth and movement during changes of contrast. Vision Research, 15, 957-961. https://www.sciencedirect.com/science/article/pii/0042698975902369

Flynn, O. F. & Shapiro, A. G. (2018). The perpetual diamond: contrast reversals along thin edges create the appearance of motion in objects. i-Perception, 9(6), 1–6. https://journals.sagepub.com/doi/full/10.1177/2041669518815708

Kitaoka, A. (2006). Configurational coincidence among six phenomena: A comment on van Lier and Csathó (2006). Perception, 35, 799-806. https://journals.sagepub.com/doi/10.1068/p5319b

Rogers, B., Anstis, S., Ashida, H., & Kitaoka, A. (2019). Reversed phi and the “phenomenal phenomena” revisited. i-Perception, 10 (4), 1–22. https://journals.sagepub.com/doi/full/10.1177/2041669519856906

Gregory, R. L. & Heard, P. F. (1983). Visual dissociations of movement, position, and stereo depth: Some phenomenal phenomena. Quarterly Journal of Experimental Psychology, A, 35, 217-237. https://journals.sagepub.com/doi/10.1080/14640748308402127

2012年5月11日開設

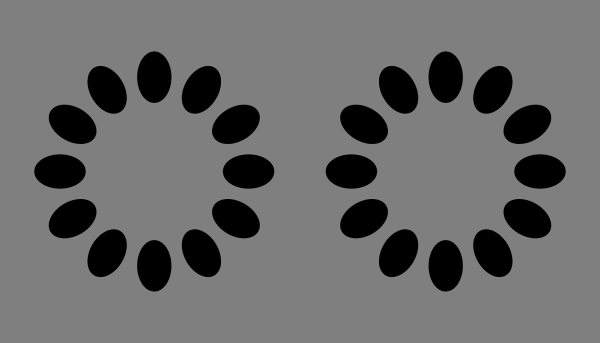

A demo of "reversed phi"
(リバースファイのデモ)

リングの位置は静止しているが、ずっと右に回転して見える。

Rings appear to rotate clockwise constantly, though they actually do not change the positions.

Copyright Akiyoshi Kitaoka 2020 (April 18)



60 ms / frame, 20 frames

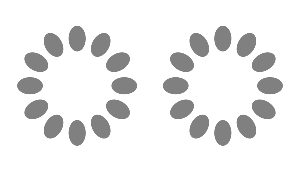

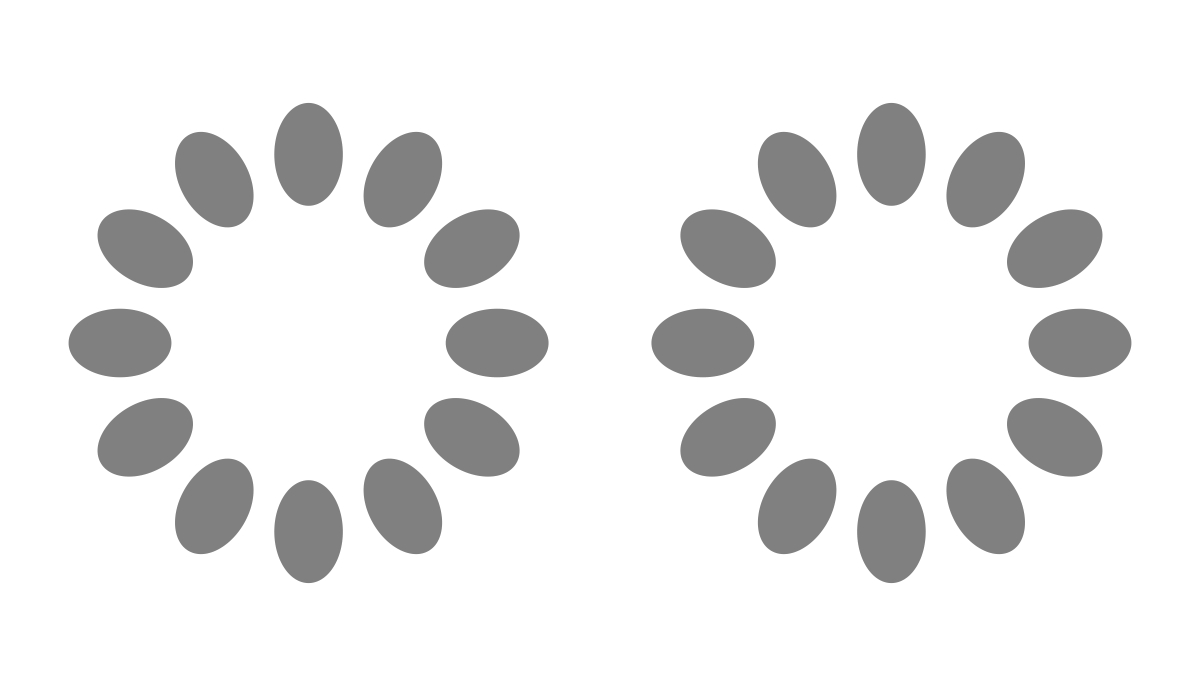

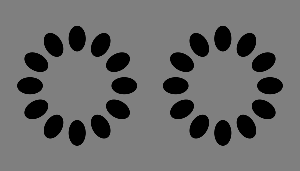

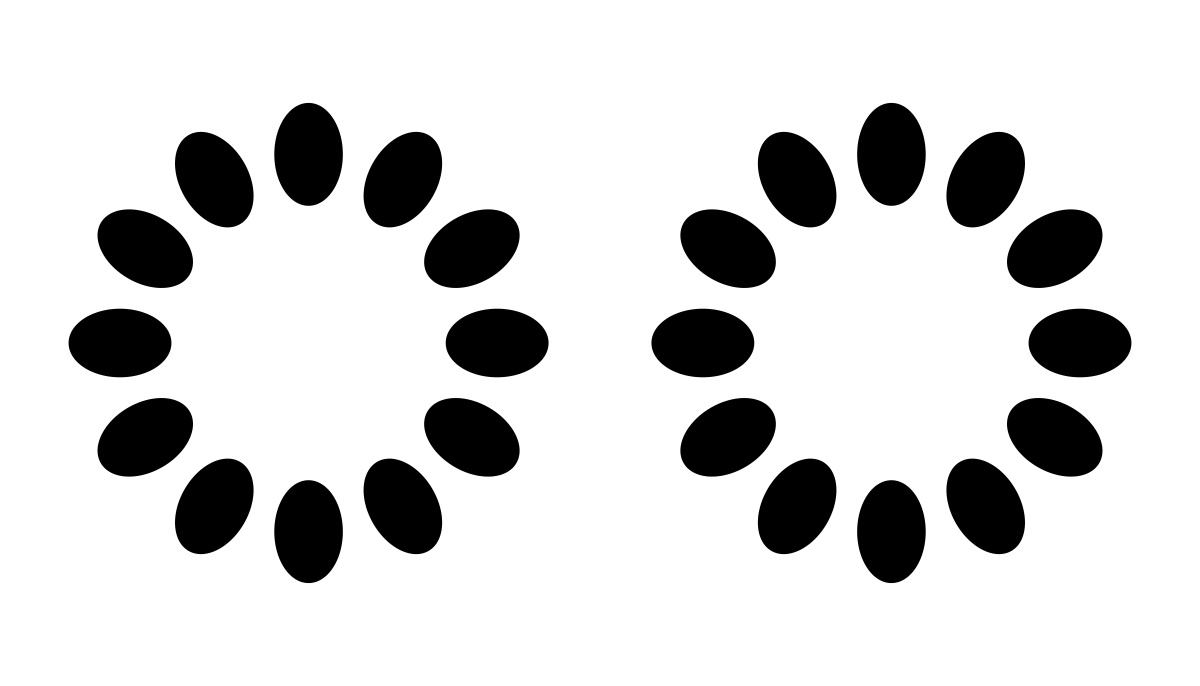

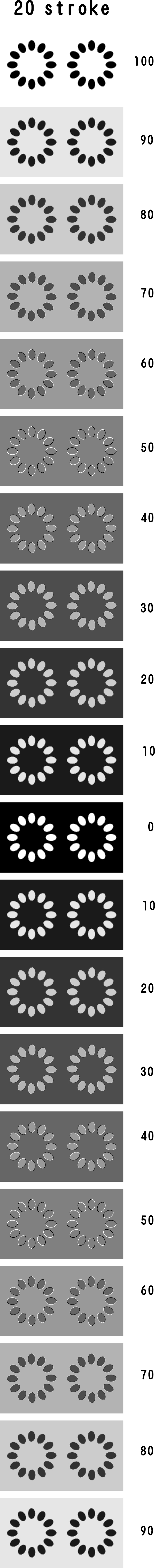

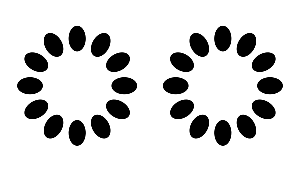

A demo of "reversed phi" produced with phenomenal phenomena
(フェノメナルフェノメナによるリバースファイのデモ)

リングはずっと右に回転して見えるが、実は左に回転している。

Rings appear to rotate clockwise constantly, though they actually rotate counterclockwise.

Copyright Akiyoshi Kitaoka 2020 (April 2)



150 ms / frame



60 ms / frame, 20 frames

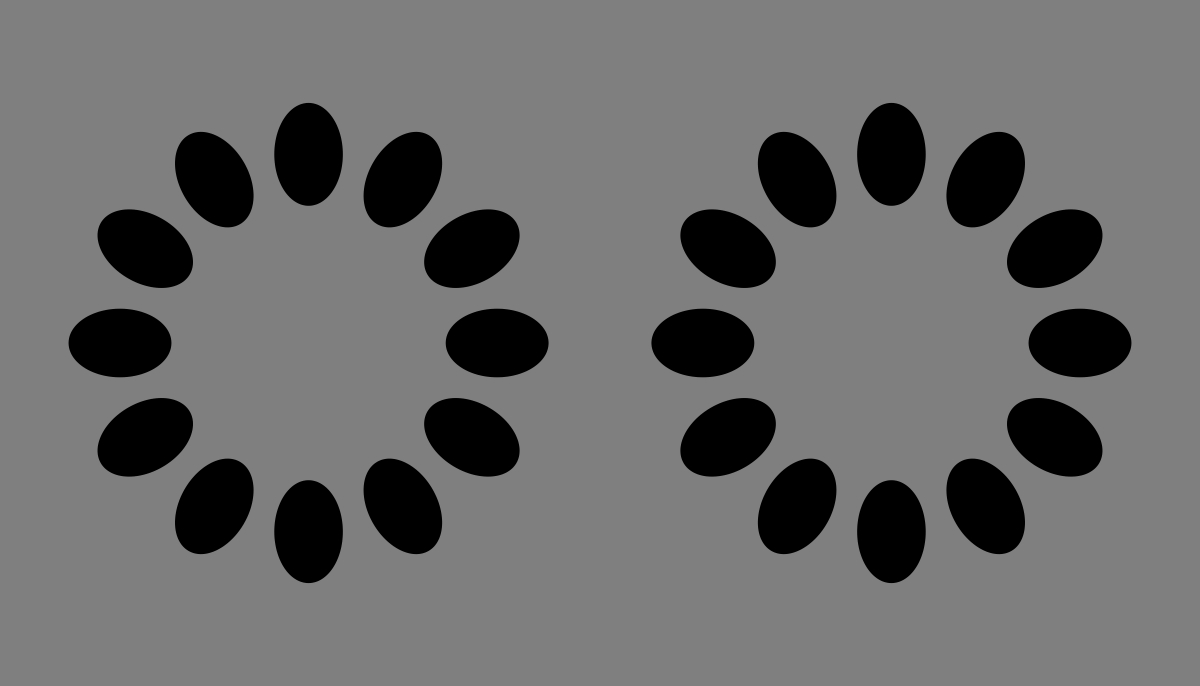

A demo of reversed phi
(リバースファイのデモ)

リングはずっと右に回転して見えるが、実は左に回転している。

Rings appear to rotate clockwise constantly, though they actually rotate counterclockwise.

Copyright Akiyoshi Kitaoka 2020 (April 2)



150 ms / frame



60 ms / frame, 20 frames

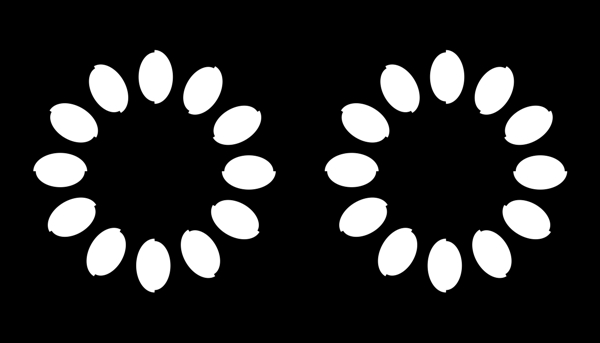

A demo of "reversed phi" produced with phenomenal phenomena 2
(フェノメナルフェノメナによるリバースファイのデモ 2)

リングはずっと右に回転して見えるが、実は左に回転している。

Rings appear to rotate clockwise constantly, though they actually rotate counterclockwise.

Copyright Akiyoshi Kitaoka 2020 (April 2)



150 ms / frame




50 ms/frame

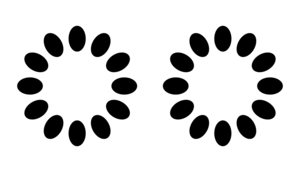

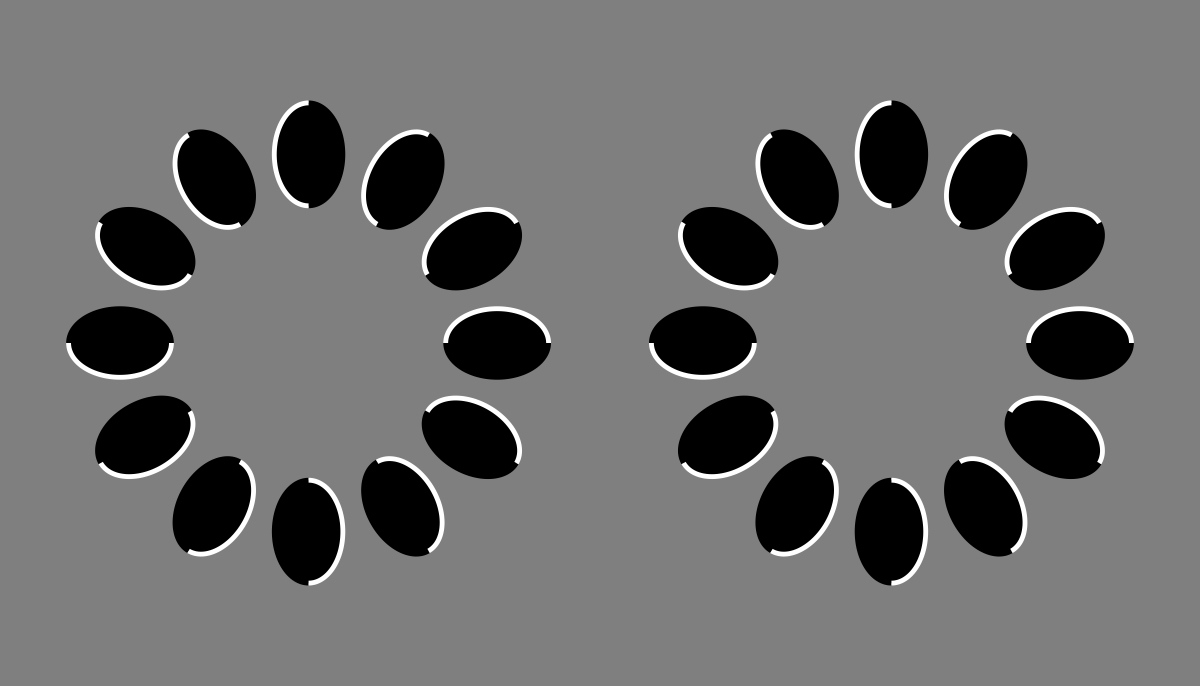

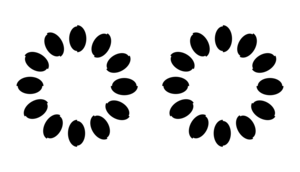

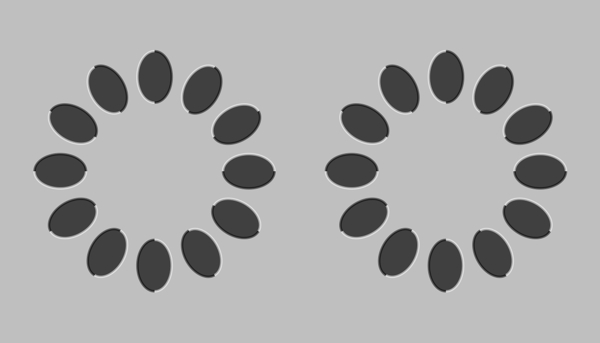

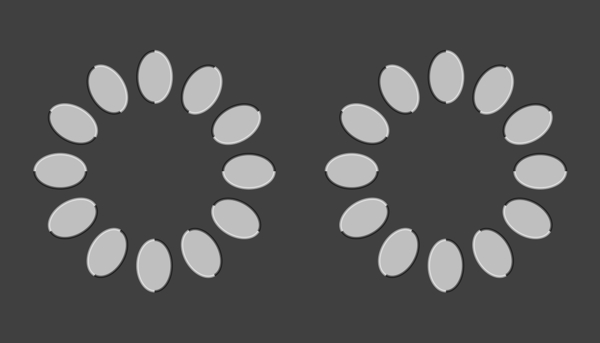

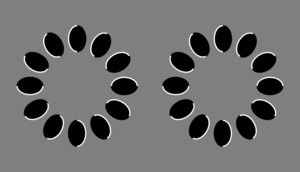

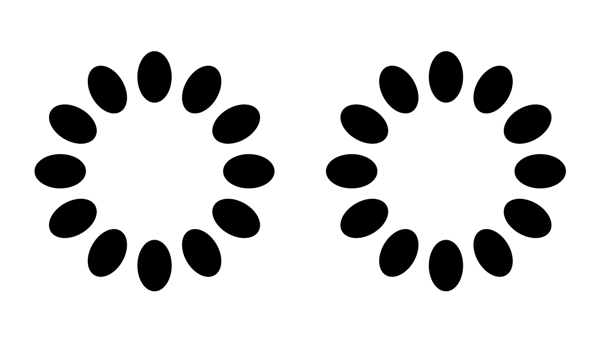

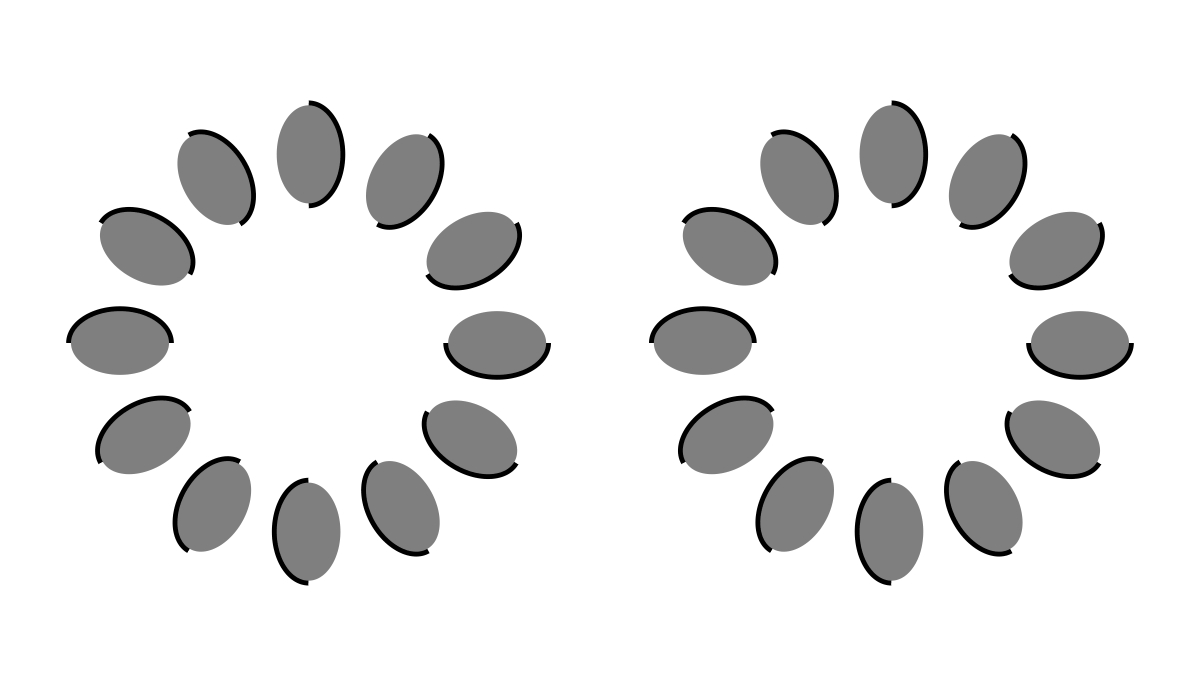

リバースファイ(ということでよいと思う)
Kind of reversed phi

リングはずっと右に回転して見える。

Rings appear to rotate clockwise constantly.

Copyright Akiyoshi Kitaoka 2020 (March 21)





----------------------------------------------------------
This movie consists of 40 frames.

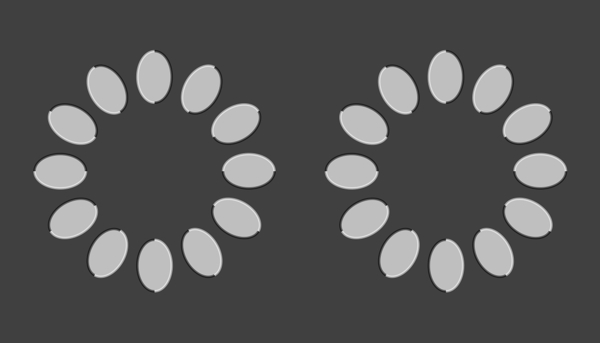

Frame 1


Frame 6


Frame 11


Frame 16

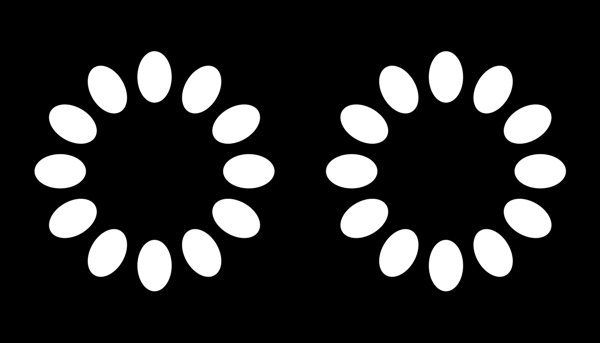

Frame 21


Frame 26


Frame 31


Frame 36


(back to) Frame 1

----------------------------------------------------------

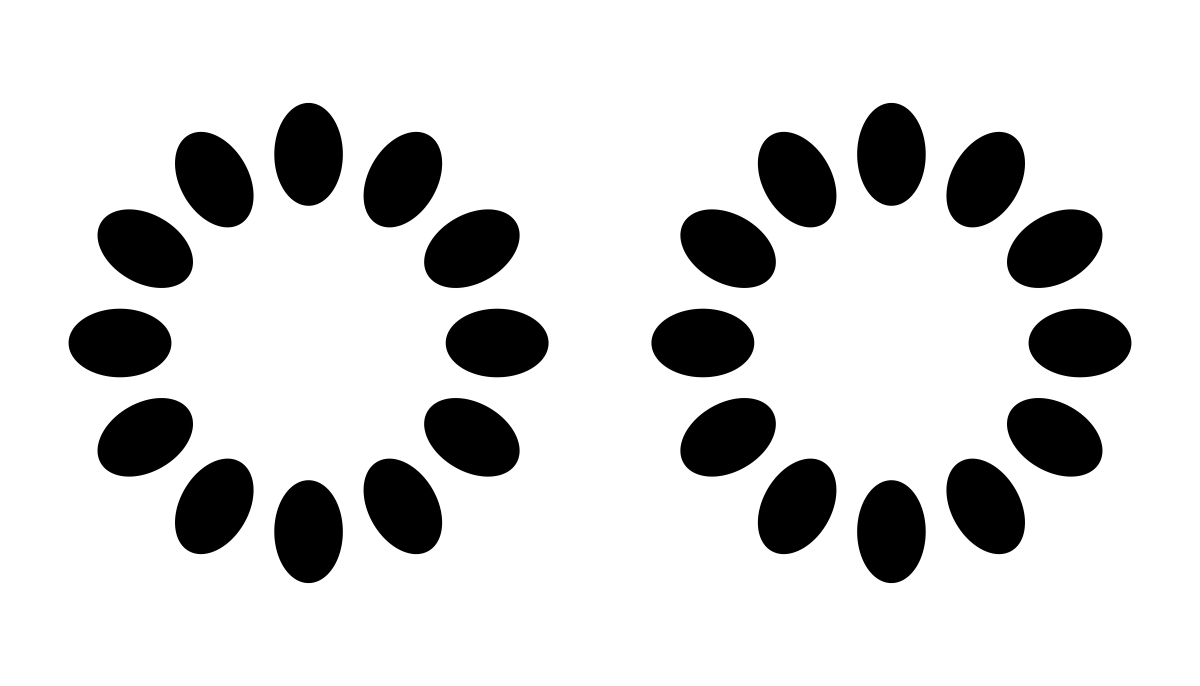

a movie made up of the 8 frames shown above (70 ms/frame)





50 ms/frame

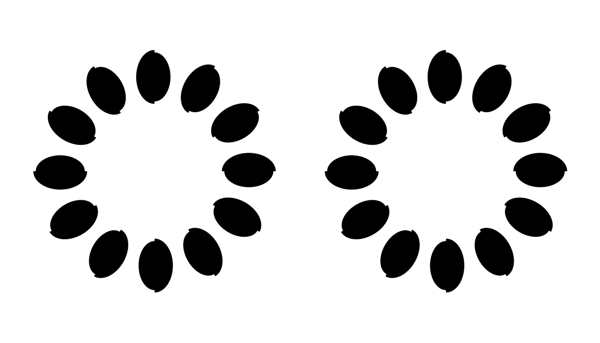

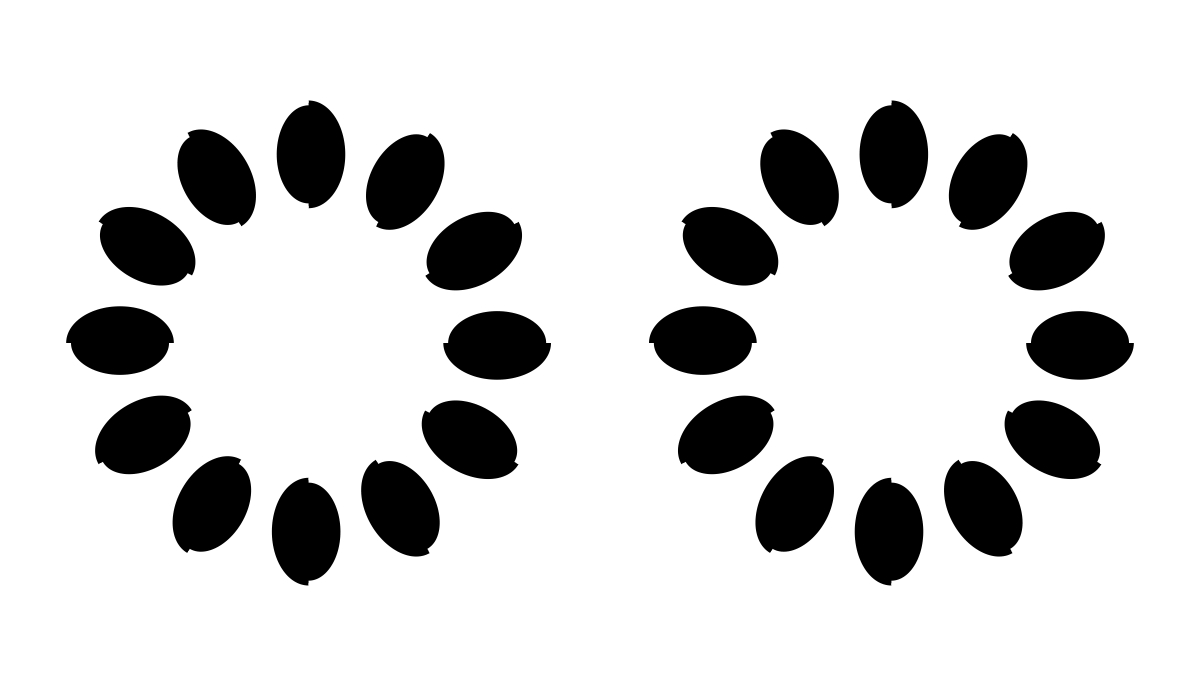

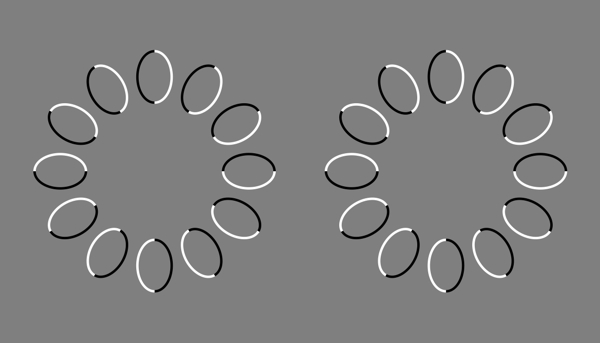

リバースファイ(reversed phi)

リングは右に回転したり、左に回転したりして見える。

Rings appear to rotate to and fro, though black or white arcs are stationary.

Copyright Akiyoshi Kitaoka 2020 (March 17)




縮小版(300 x 172 pixel)


以下、各フレームの画像(クリックして拡大)。




50 ms/frame

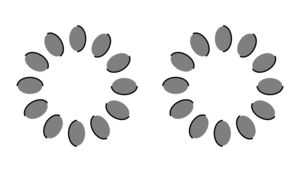

フェノメナル・フェノメナ(phenomenal phenomena)

リングは右に回転したり、左に回転したりして見える。

Rings appear to rotate to and fro, though black or white arcs are stationary.

Copyright Akiyoshi Kitaoka 2020 (March 19)




縮小版(300 x 172 pixel)


Gregory, R. L. & Heard, P. F. (1983). Visual dissociations of movement, position, and stereo depth: Some phenomenal phenomena. Quarterly Journal of Experimental Psychology, A, 35, 217-237.



4ストローク、連続回転版。時計回りに回転して見える。

Copyright Akiyoshi Kitaoka 2020 (March 28)




50 ms/frame

フェノメナル・フェノメナ(phenomenal phenomena)

リングは右に回転したり、左に回転したりして見える。

Rings appear to rotate to and fro, though black or white arcs are stationary.

Copyright Akiyoshi Kitaoka 2020 (March 19)




縮小版(300 x 172 pixel)



4ストローク、連続回転版。時計回りに回転して見える。

Copyright Akiyoshi Kitaoka 2020 (March 28)




50 ms/frame

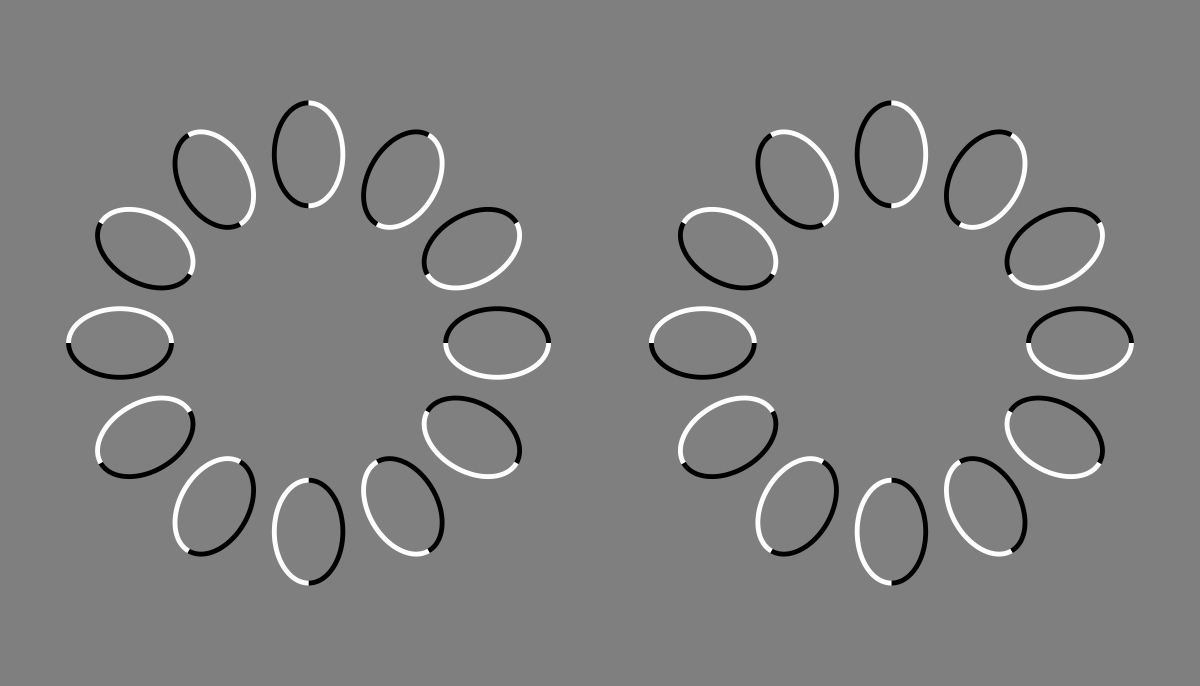

ファイ(phi movement)

リングは右に回転したり、左に回転したりして見える。

Rings appear to rotate to and fro, though black ellipses are stationary.

Copyright Akiyoshi Kitaoka 2020 (March 19)




縮小版(300 x 172 pixel)

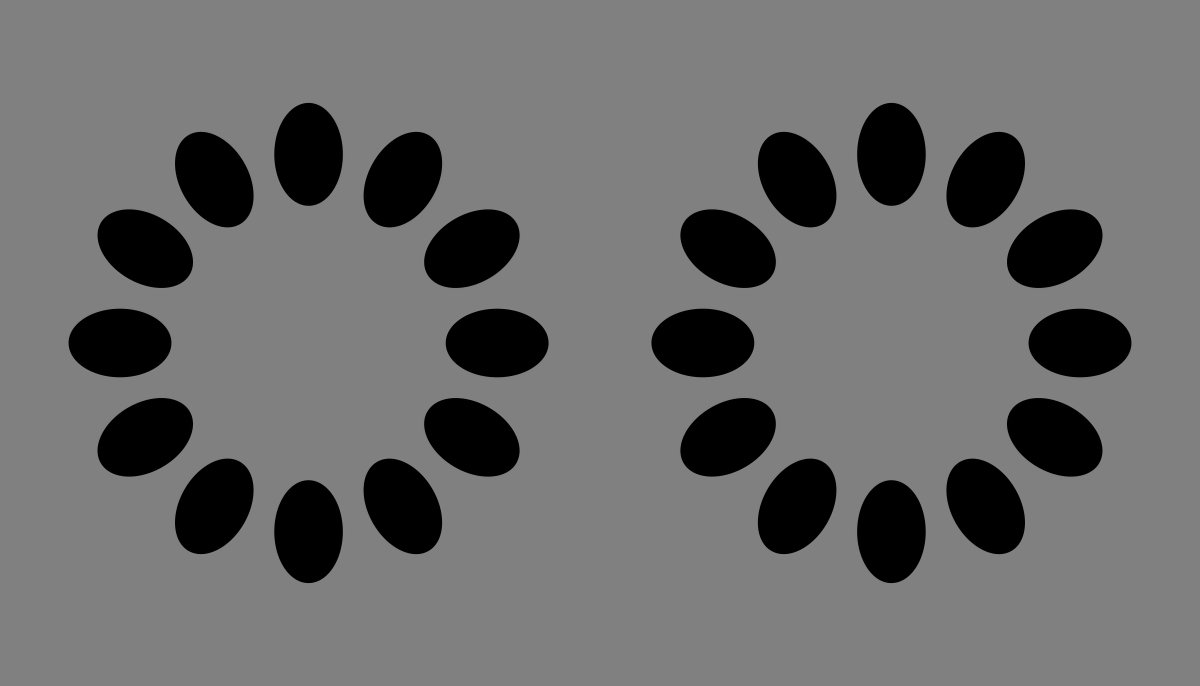

80 ms/frame


80 ms/frame

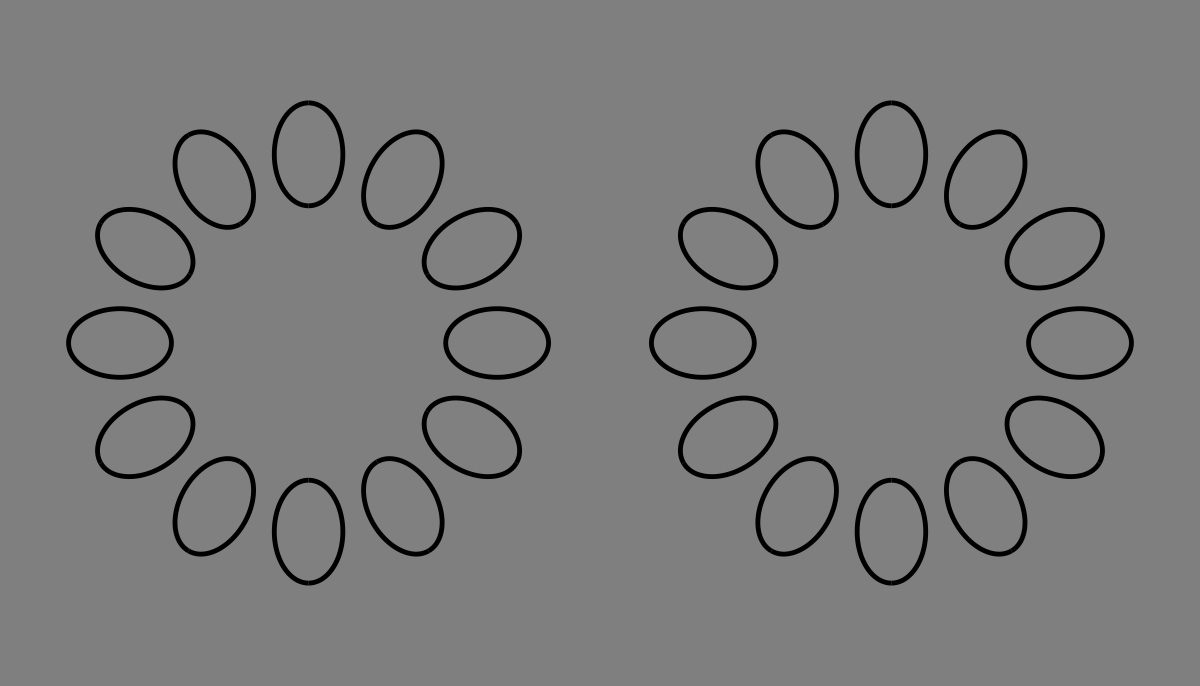

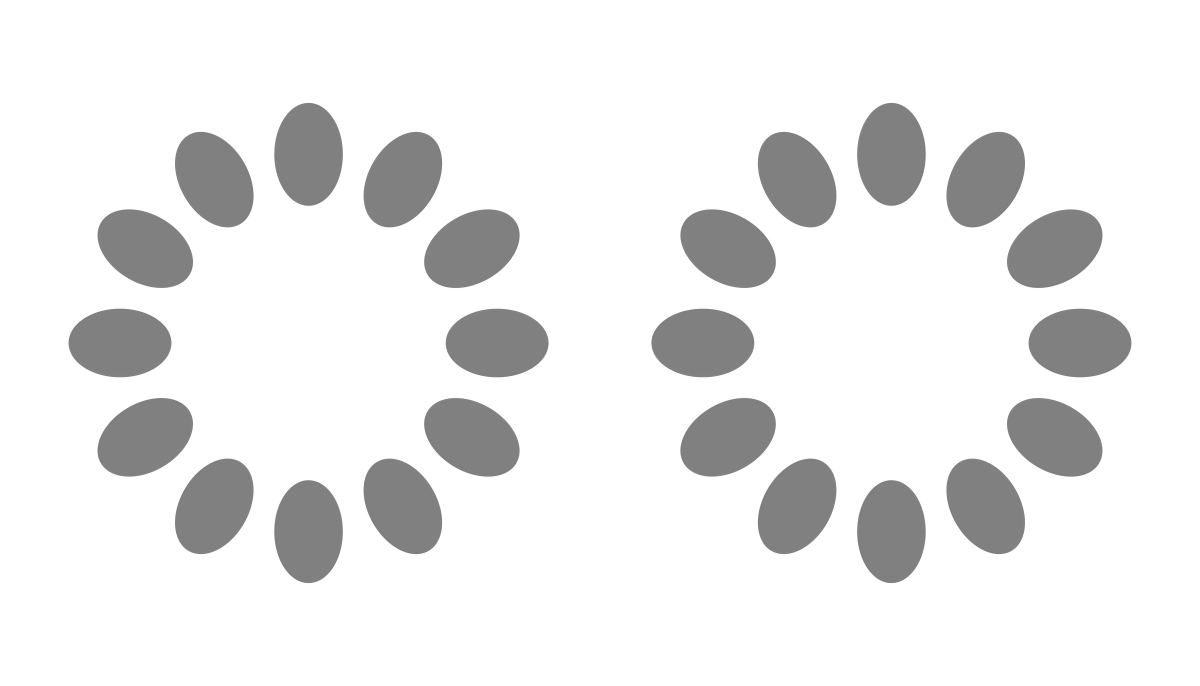

ファイ?(phi movement?)

リングは右に回転して見える。

Rings appear to rotate clockwise.

Copyright Akiyoshi Kitaoka 2020 (April 1)




100 ms/frame


300 ms/frame

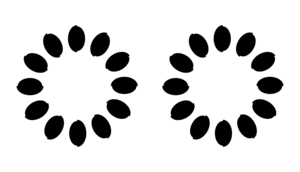

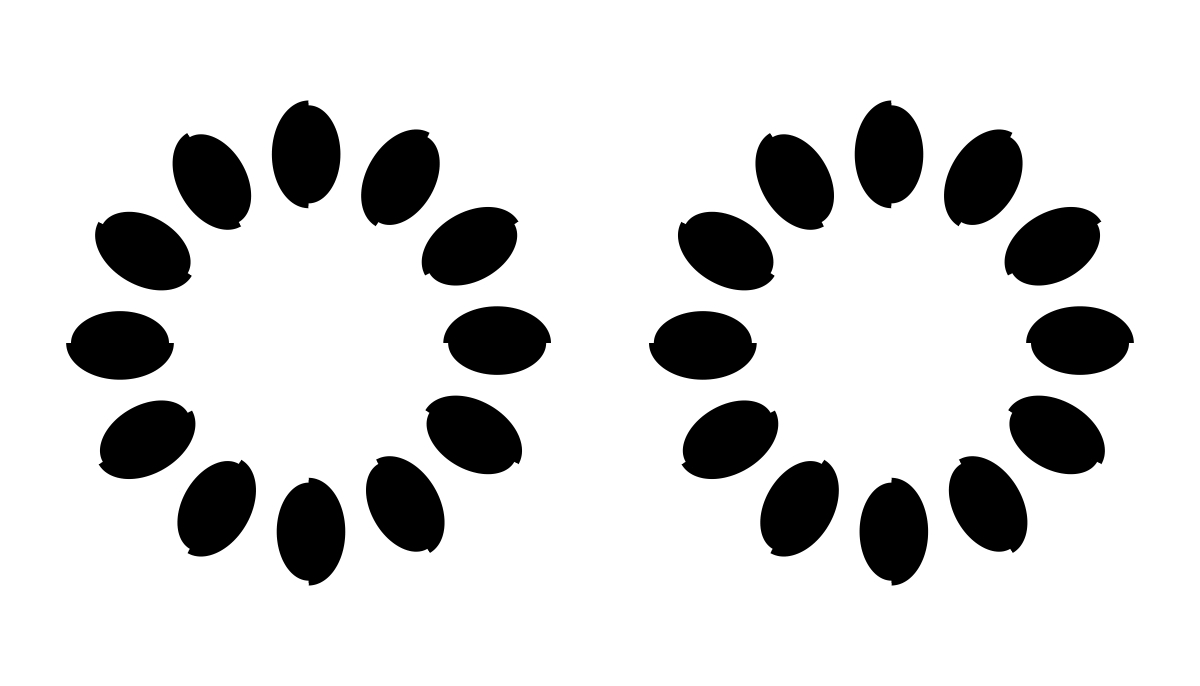

4ストローク運動のデモ(ファイとリバースファイ)
4-stroke apparent motion (phi and reversed phi)

リングは右に回転して見える。

Rings appear to rotate clockwise.

Copyright Akiyoshi Kitaoka 2020 (March 20)






縮小版(300 x 172 pixel)


cf.
http://www.georgemather.com/MotionDemos/FourstrokeMP4.html














100 ms/frame


300 ms/frame

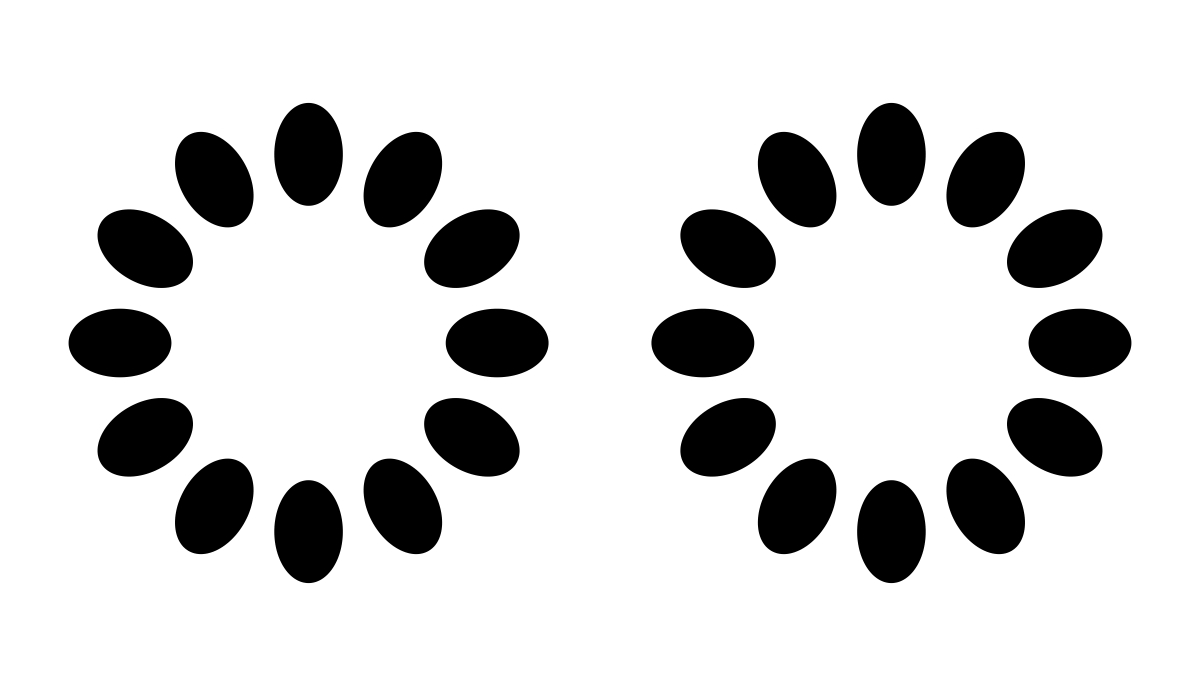

4ストローク運動のデモ(すべてリバースファイ?)
4-stroke apparent motion (only reversed phi)

リングは右に回転して見える。

Rings appear to rotate clockwise.

Copyright Akiyoshi Kitaoka 2020 (March 20)






縮小版(300 x 172 pixel)


cf.
Takeuchi, T. (1997). The motion analogue of the cafe wall illusion. Perception, 26, 569-584.














1000 ms/frame

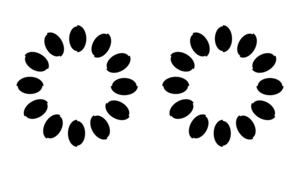

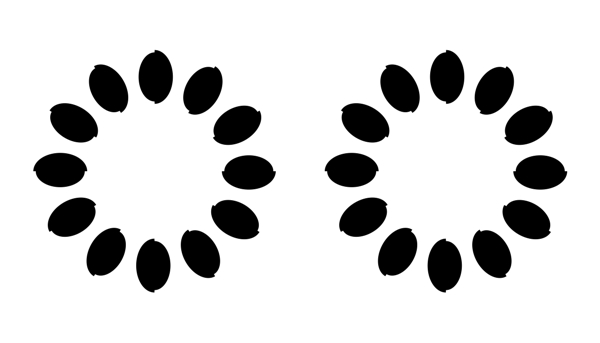

2ストロークのリバースファイ
2-stroke apparent motion (only reversed phi)

リングは往復回転して見える。

Rings appear to rotate to and fro.

Copyright Akiyoshi Kitaoka 2020 (March 20)




縮小版(300 x 172 pixel)



400 ms/frame

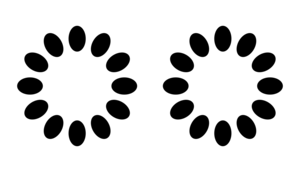

4ストロークのリバースファイ
4-stroke apparent motion (only reversed phi)

リングは往復回転して見える。

Rings appear to rotate to and fro.

Copyright Akiyoshi Kitaoka 2020 (March 20)




縮小版(300 x 172 pixel)



なめらかなリバースファイと急なファイ
Smooth reverse phi and abrupt phi

リングは右に回転して見える。ガクっとするところは、ファイ運動。

Rings appear to rotate clockwise.

Copyright Akiyoshi Kitaoka 2020 (March 17)




縮小版(300 x 172 pixel)

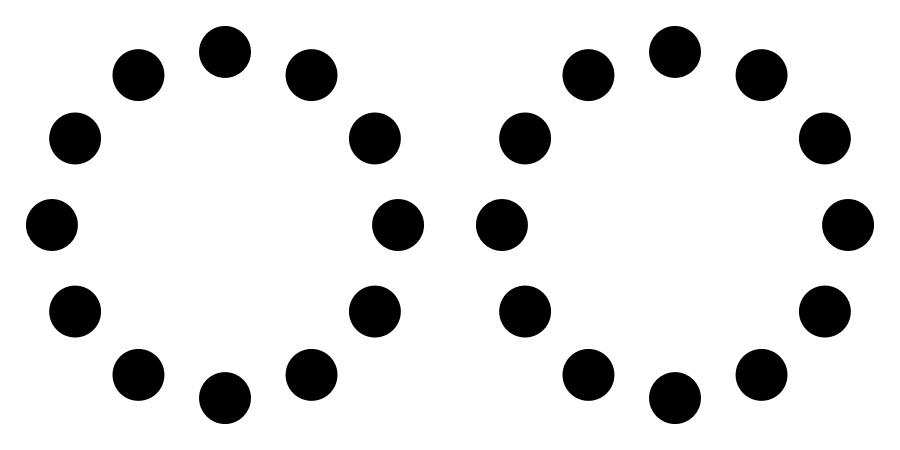

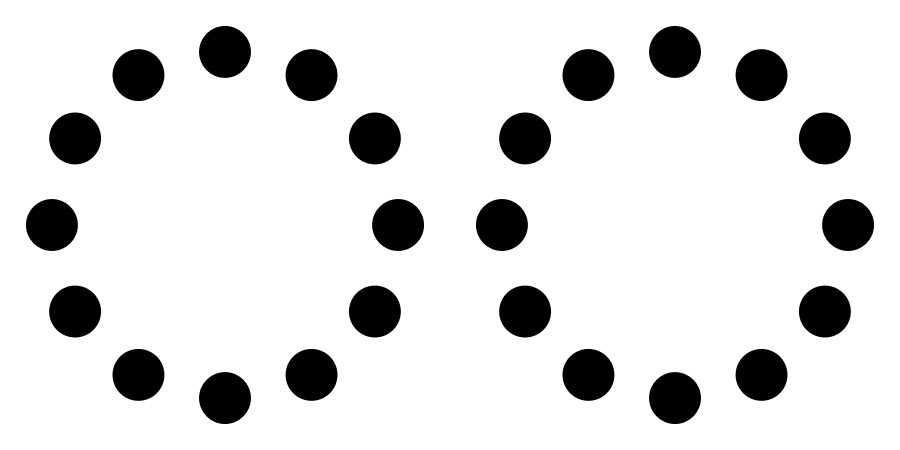

Flash デモ(見れないかもしれない)

左のリングは反時計回り、右のリングは時計回りに回転して見える。

Copyright Akiyoshi Kitaoka 2012 (May 12)

Anstis S M, 1970 “Phi movement as a subtraction process” Vision Research 10 1411-1430

Anstis S M, Rogers B J, 1975 “Illusory reversal of visual depth and movement during changes of contrast” Vision Research 15 957-961

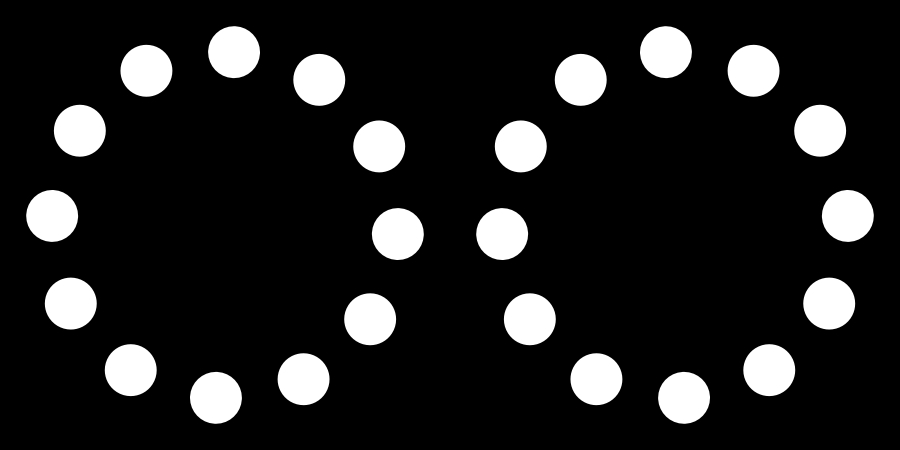

GIF デモ 2015/6/25



GIF デモ 2020/4/9

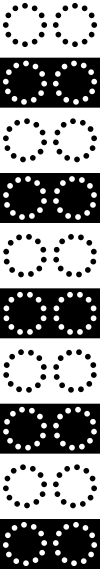

上記の動画は下記10枚の画像から成っている。
The movie shown above consists of 10 images shown below.

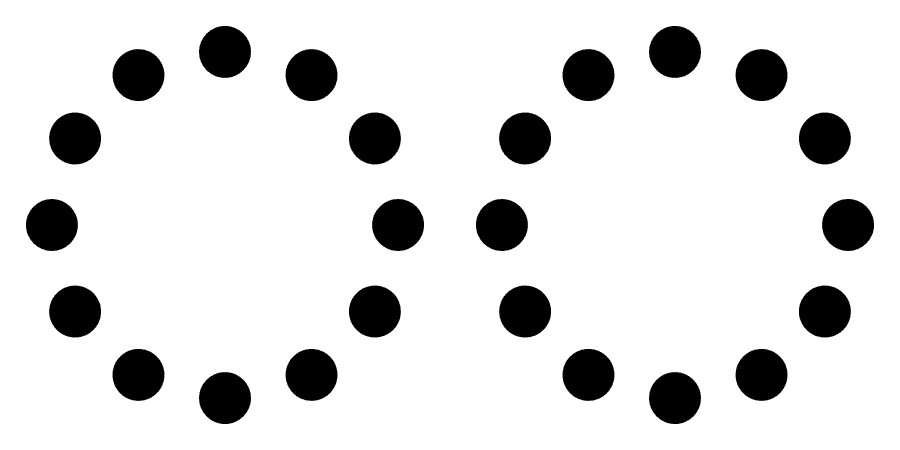

ゆっくり動かしてみたところ(1秒に2枚表示)
500 ms/frames



最小デモ

左のリングは反時計回り、右のリングは時計回りに回転して見える。


上記の動画は下記3枚の画像から成っている。

最初の図に戻る


4ストローク運動 (Four stroke apparent motion)

左のリングは反時計回り、右のリングは時計回りに回転して見える。

Copyright Akiyoshi Kitaoka 2014 (June 7)

Mather, G. and Murdoch, L. (1999) Second-order processing of four-stroke apparent motion. Vision Research, 39, 1795-1802.
http://www.georgemather.com/MotionDemos/FourstrokeMP4.html
http://www.georgemather.com/MotionDemos/FourstrokeQT.html
